UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V

UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V
UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V
UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V

Large Image :  UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V

Product Details:
Place of Origin: China
Brand Name: Learnew OPto
Certification: CE ROHS SGS
Model Number: LN-SMD6565UVA-P4LN-SMD6868UV-P4
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Packaging is the default packaging, product packaging can be negotiated
Delivery Time: 7 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000000PC/Month

UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V

Description
Type: 6565 6868 UVA SMD Wavelength: 365-405nm
WHOLE SIZE: 6.5*6.5MM 6.8*6.8MM VF: 3-16v
VIEW ANGLE: 120° LENS: QUARTZ GLASS LENS
Appilcation: Offset Printer,3D Printer And Exposure Curing Serivces: Support Custom Mixed Wavelengthor Other Wavelength
High Light:

6868 365nm LED SMD Chips

,

QUARTZ GLASS LENS LED SMD Chips

,

6.8x6.8MM UV LED Chip

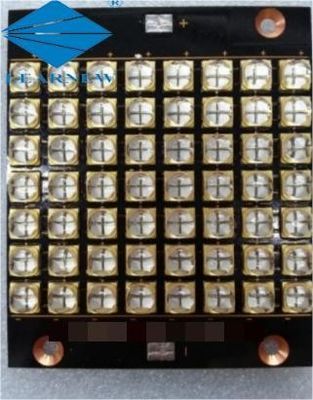

6868 6565 UVA LED SMD 10W 20W 3-16V UV LED chip for UV curing module



UV-A POWER Dominant Wavelength Optical Power IF VF WHOLE SIZE Lighting Area VIEW ANGLE LENS
LN-SMD6868UV-P4 10W 365nm 3200-4000mW 1500mA
(Max=2A)
6.0-7.0V 6.8*6.8MM R5.0MM 120° QUARTZ GLASS LENS
385nm 4000-4500mW
395nm 4100-5000mW
UV-A POWER Dominant Wavelength Optical Power IF VF WHOLE SIZE Lighting Area VIEW ANGLE LENS
LN-SMD6565UV-P4 10W 365nm 3200-4000mW 1500mA
(Max=2A)
6.0-7.0V 6.5*6.5MM R5.0MM 120° QUARTZ GLASS LENS
385nm 4000-4500mW
395nm 4100-5000mW



Learnew Opto 0.5-300W UVA LED COB AND SMD, we can undertake various customized uva modules OEM and ODM services.

6868 6565 UVA LED SMD Lighting angle 60°-120°, can be used alone for nail lamp curing, can be designed as UVA + PCB board, set UVA module for various commercial and industrial curing, printers, ink printers, printing machines.
Learnew Opto UVA products that support custom mixed Dominant Wavelengthor other Dominant Wavelength.

UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V 0

UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V 1

UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V 2UV Curing Module 6868 6565 UVA LED SMD Chips 365nm 405nm 395nm 10W 20W 3-16V 3

About Learnew opto and brand story(Artificial supplemental horticultural lights)

Dedicated to efficient agriculture with LED technology

Engaged in LED products manufacture, R&D and market nearly decade years, Support OEM & ODM

Learnew own 8 automatic production lines, 2 industry level laboratories to support both LED components(SMD LED & LED COB) and LED grow light

Professional foreign trade sales team, the average member of more than 3 years of relevant work experience

Market cover North America, European, South America and Southeast Asian

Famous customers include TOSHIBA LIGHTIN, FLEXTRONICS...

Learnew project team with more than 3 years experience of big greenhouse bu



Payment Term&Delivery time



1,All advanced payment is needed before start design and production.

2,Delivery in 2-4 Weeks after payment comfirmed; delivery in 1-3Working days if enoug.

FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?

A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
