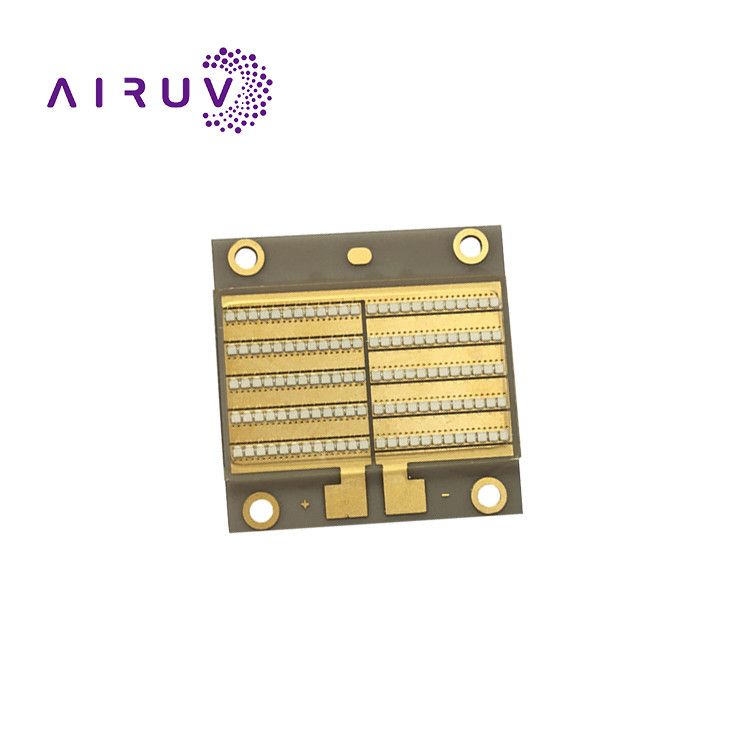

34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm

34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm
34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm
34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm 34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm 34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm 34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm 34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm

Large Image :  34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm

Product Details:
Place of Origin: China
Brand Name: Learnew
Certification: CE
Model Number: LN-SMD3535UVC-P1
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: USD60-180/Piece
Delivery Time: 10
Payment Terms: L/C, T/T
Supply Ability: 3000000

34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm

Description
Product Type: UVC LED CHIP POWER: 300w
Voltage: 34-38v VIEW ANGLE: 120°
Wavelength: 365nm 385nm 395nm WHOLE SIZE: 3.5*3.5MM
JUNCTION TEMPERATURE: 60℃ LENS: QUARTZ GLASS LENS
SUBSTRATE: ALN Coppering Serve: Support Sample
High Light:

300w UV LED CHIP

,

395nm Smd Uv Led Chip

300w 365nm 385nm 395nm 34-38v UVA LED UV LEDCHIP

Specification of SMD LED Chips



Optical Power
95000-150000mW
Input Voltage(V)
34-38v
Warranty(Year)
2-Year
Working Time (hours)
20000
Chip Material
VERTICAL (LG or SEOUL SEMI)
Power
300w
Brand Name
LEARNEW Opto
IF
8400mA (Max=12A)
Dominant Wavelength
365nm
385nm
395nm
WHOLE SIZE
35*35MM
LENS
QUARTZ GLASS LENS
Design Advantage
low thermal resistance ,High effiency 40%-50% ,Ingorganic encapsulation ,High density and intensity
Lighting solutions service
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, auto CAD layout



Products Description




34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm 0

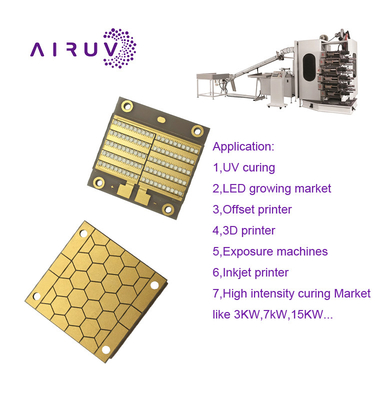

Application

1,UV curing
2,LED growing market
3,Offset printer
4,3D printer
5,Exposure machines
6,Inkjet printer
7,High intensity curing Market like 3KW,7kW,15KW..






34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm 1



Design Advantage

1,Long life span
2,low thermal resistance
3,High effiency 40%-50%
4,Ingorganic encapsulation
5,High density and intensity
6,Screw free assemble for high power curing use
7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
8,Special view angle in 30DEG or 120DEG

34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm 2



34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm 3

Initial Electrical/Optical Characteristics

1.Measurement tolerance of peak wavelength is ±1nm. 2.The value of optical power(radiant flux) here is surface measurement for reference,real value of optical power to the receptor’s
surface is related with use conditions.

3.Special attention and control the temp of the substrate in using process,Good heat
treatment is necessary due to the high power,Ensure substrate temp below 50C in full load use.
4.As to protect your eyes in application process,anti-uv sunglasses may necessary in operating



34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm 4

34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm 5



34-38v UVA LED UV LED CHIP 300w 365nm 385nm 395nm 6

FAQ

Q1: Do you supply OEM,ODM service?

A1: YES. Learnew opto with 6 engineers who of 10 years industry experience, special to offer ODM service in fast response.



Q2: Can I print my logo on the product or design related products I need?

A2: Yes, we have professional equipment and R&D personnel, and can design according to customer needs.



Q3: Can I order samples?

A3: Yes, we welcome to order samples to test and check the quality. Mixed samples are acceptable.



Q4: Is there a minimum order quantity limit?

A4: Minimum order quantity, 1 sample can be provided for inspection.



Q5: How to deal with product failure after sale?

A5: First of all, our products are produced in a strict quality control system, and the defective rate is very low, not exceeding 0.2%. Secondly, for defective bulk products, we will repair them and resend them to you, or we can discuss solutions based on actual conditions.



Q6: What about the delivery time?

A6: It takes 3-5 days for samples, and 1-2 weeks for mass production



Q7: How do you ship the goods and how long will it take to arrive?

A7: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea transportation are also optional.
