250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W

250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W
250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W
250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W 250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W 250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W 250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W 250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W

Large Image :  250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW OPTO
Certification: CE/RoHs
Model Number: LN-SMD3535UVC-P3D
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Anti-static Blister packing
Delivery Time: 1-7 working days for samples, 1-4Weeks for quantity Order
Payment Terms: L/C, D/A
Supply Ability: 500,000PCS per month

250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W

Description
NAME: UVC LED CHIP VF: 5-7V
IF: 500-700mA/350-500mA SIZE: 3.5*3.5MM
POWER: 3-5W Service: Customization/sample
High Light:

250nm 10W Led Diode Chip

,

ALN Coppering Led Diode Chip

,

3535 SMD UVC LED CHIPs

250nm 254nm 260nm 265nm 275nm UVC Led Diode High Optical Power 3535 SMD 1W 3W 5W 10W UVC LED CHIP



3535 UVC Details

model POWER Dominant Wavelength Optical Power IF WHOLE SIZE VIEW ANGLE LENS SUBSTRATE Life span JUNCTION TEMPERATURE
LN-SMD3535UVC-P3 3-5W 270-280nm 80-120mW 500-700mA 3.5*3.5MM 120° QUARTZ GLASS LENS ALN Coppering LM70=5000Hrs
LM50=10000Hrs
60C
260-270nm 80-120mW
250-260nm 80-120mW
LN-SMD3535UVC-P3D 3W 270-280nm 50-70mW 350-500mA 3.5*3.5MM 120° QUARTZ GLASS LENS ALN Coppering 60C
260-270nm 50-70mW
250-260nm 50-70mW



UVC LED CHIP Design Advantage

  • Quartz glass package
  • High radiant flux
  • Narrow Wavelength
  • Inorganic & Nitrogen package
  • Low thermal resistance



UVC LED Diode Application

  • ICU Hospital
  • Air purifier
  • Water purifier
  • Washing machines
  • Sterilization...

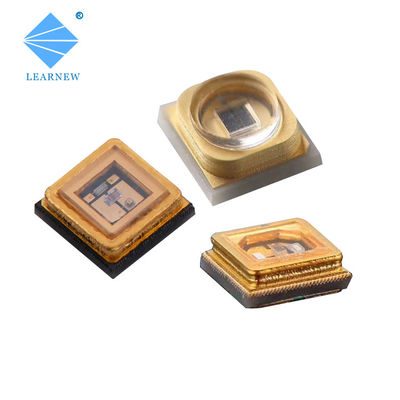

UV SMD CHIP Picture

250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W 0

250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W 1

250nm 260nm 265nm 275nm UVC Led Diode Chip High Optical Power 3535 SMD 3W 5W 2
