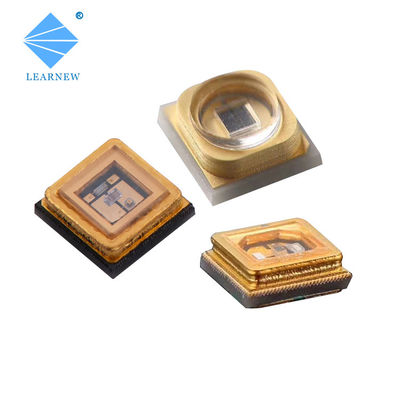

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
Learnew delivered what we asked for,quickly and well made. Happy to work with Learnnew, he can tell me accurately about the product and save me a lot of time, they are very professional

—— Ashraf Trading

I'm Online Chat Now

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM
Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM
Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM

Large Image :  Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW OPTO
Certification: CE/RoHs/SGS
Model Number: LN-SMD3535UVC-P0.5
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: USD$0.35-USD$1.8/PCS
Packaging Details: Anti-static Blister packing
Delivery Time: 1-3 working days for samples, 1-4Weeks for quantity Order
Payment Terms: T/T, Paypal,Alipay, , T/T
Supply Ability: 500,000PCS per month

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM

Description
Power: 0.5W Narrow Wavelength: 220-285NM
Input Current: 50(Max=60mA) Input Voltage: 5-7V
Substrates: ALN Coppering LENS: Quartz Glass Lens
View Angle: 120DEG Chips Brand: Imported Level-A LG/PW Chips
High Light:

Current 100mA UVC LED Chips

,

UVC LED Chips 35x35MM 120DEG

,

Water Purifier UVC LED Chips

Air purifier source SMD 3535 UVC LED Chips with voltage 5-7V Germicial power 7-15mW current 50mA



North American customers recommended 1W 3535 UVC LED Chips

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM 0

Specification of SMD LED Chips

models Power Peak Wavelength

    Input  Current

Radiant Power Whole Size
LN-SMD3535UVC-P0.5(250-260NM) 0.5W 250-260NM 50mA(Max=60mA) 7-15mW 3.5*3.5mm
LN-SMD3535UVC-P0.5(260-270NM) 0.5W 260-270NM 50mA(Max=60mA) 7-15mW 3.5*3.5mm
LN-SMD3535UVC-P0.5(270-280NM) 0.5W 270-280NM 50mA(Max=60mA) 7-15mW 3.5*3.5mm



Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM 1





Thick 3535 ALN Coppering Substrates with New Generation Flip chip LG/Seoul semi/Dowa/PW Packing technology, Results in a good heat conductive(Thermal resistance 0.1-0.2C/W) & Long Life span(LM50 10000Hrs) & Efficiency in Sterilization purpose.

Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM 2Water Purifier Germicial Power 7-15mW UVC LED Chips With Voltage 5-7V Size 35*35MM 3







Appilcation:

  • CU Hospital
  • Air purifier
  • Water purifier
  • Washing machines Sterilization...
