0.5W 1W UV 250-260nm 260-270nm 270-280nm SMD 3535 UVC Led Chip For Air Purifier And Water Purifier

0.5W 1W UV 250-260nm 260-270nm 270-280nm SMD 3535 UVC Led Chip For Air Purifier And Water Purifier
0.5W 1W UV 250-260nm 260-270nm 270-280nm SMD 3535 UVC Led Chip For Air Purifier And Water Purifier
0.5W 1W UV 250-260nm 260-270nm 270-280nm SMD 3535 UVC Led Chip For Air Purifier And Water Purifier 0.5W 1W UV 250-260nm 260-270nm 270-280nm SMD 3535 UVC Led Chip For Air Purifier And Water Purifier 0.5W 1W UV 250-260nm 260-270nm 270-280nm SMD 3535 UVC Led Chip For Air Purifier And Water Purifier 0.5W 1W UV 250-260nm 260-270nm 270-280nm SMD 3535 UVC Led Chip For Air Purifier And Water Purifier

Large Image :  0.5W 1W UV 250-260nm 260-270nm 270-280nm SMD 3535 UVC Led Chip For Air Purifier And Water Purifier

Product Details:
Place of Origin: China
Brand Name: Learnew
Certification: CE,SGS,ROHS
Model Number: LN-SMD3535UVC-P1/LN-SMD3535UVC-P1D/LN-SMD3535UVC-P0.5/LN-SMD3535UVC-P0.5D/LN-SMD3535UVAC-P0.5
Payment & Shipping Terms:
Minimum Order Quantity: 5000
Price: US$0.4/PCS-US$2.5/PCS
Packaging Details: Samples packing method can be in a Antistatic bag, Anti-static plate in deal with empty space, or Circle up with foam. Order packing method will be Anti-static plate in deal with empty space.
Delivery Time: 7-30
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3000000/Month

0.5W 1W UV 250-260nm 260-270nm 270-280nm SMD 3535 UVC Led Chip For Air Purifier And Water Purifier

Description
Power: 0.5W,1W Dominant Wavelength: 250-260nm/260-270nm/270-280nm
Optical Power: 4-7mW/7-10mW/12-15mW/15-20mW/20-40mW VF: 5-7V
IF: 40mA (max=50mA)/50mA (max=60mA)/100mA/100mA (max=150mA) Whole Size: 3.5*3.5MM
View Angle: 120° Chips: Flip Chip (PW Or LG)
Junction Temperature: 60C Substrate: ALN Coppering
High Light:

Air Purifier 3535 UVC Led Chip

,

Water Purifier UVC Led Chip

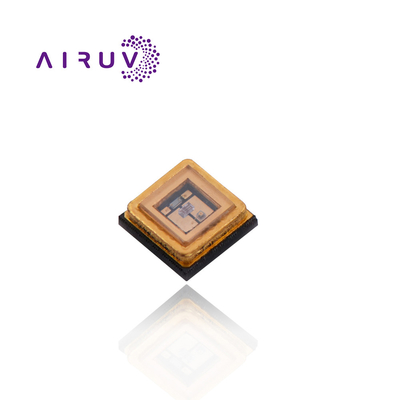

0.5W 1W UV 250-260nm 260-270nm 270-280nm SMD 3535 UVC Led Chip for Air purifier and Water purifier



Power 0.5W,1W
Dominant Wavelength 250-260nm/260-270nm/270-280nm
Optical Power 4-7mW/7-10mW/12-15mW/15-20mW/20-40mW
VF 5-7V
IF 40mA (max=50mA)/50mA (max=60mA)/100mA/100mA (max=150mA)
Whole Size 3.5*3.5MM
View Angle 120°
Lens QUARTZ GLASS LENS
Chips Flip Chip (PW or LG)
Junction Temperature 60C
Substrate ALN Coppering
Design Advantage 1,Quartz glass package
2,High radiant flux
3,Narrow Wavelength
4,Inorganic & Nitrogen package
5,Low thermal resistance
Application ICU Hospital
Air purifier
Water purifier
Washing machines
Sterilization





Learnew Opto mainly operates SMD/COB LED Chip.Learnew have been focus on the LED chip and LED light for more than 8years, with professional engineers team, 90% of them have 12years experience in the R&D and innovation of the LEDs industry.



And we also support customized service. Welcome to your consultation!
