3W UVC 3535 Package 265nm SMD High Performance SMD 500mA UVC LED Diode High Efficiency 110mW 275nm Water Air Purifications

Large Image : 3W UVC 3535 Package 265nm SMD High Performance SMD 500mA UVC LED Diode High Efficiency 110mW 275nm Water Air Purifications

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Learnew

Payment & Shipping Terms:

Minimum Order Quantity:	5000

Contact Now

3W UVC 3535 Package 265nm SMD High Performance SMD 500mA UVC LED Diode High Efficiency 110mW 275nm Water Air Purifications

Description

Chip Material:	Ingan	Input Voltage:	5-7V
Lifespan:	50000 Hours	Operating Temperature:	-40 - 80℃
Optical Attenuation:	60%	Power:	3W
Power Dissipation:	0.6	Product Weight:	0.05kg
Storage Temperature:	-40 - 110℃	Viewing Angle:	120°
Wavelength:	265nm, 255nm	Peak Wavelength:	265nm;275nm
Current:	350-500mA	Lens Material:	Quartz Glass
Optical Power:	80-110mW
Highlight:	3W UVC 3535 SMD LED diode , 265nm UVC LED for purification , high efficiency 275nm UV LED

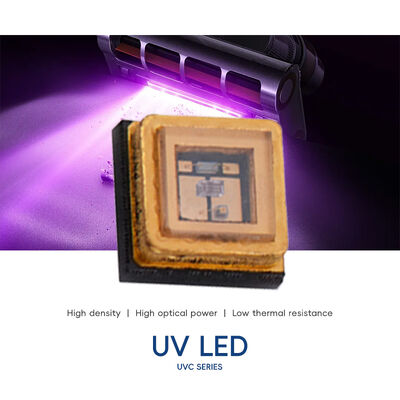

3W UVC 3535 Package 265nm SMD High Performance LED Diode

This high-performance 3W UVC LED diode features a 3535 SMD package with 265nm wavelength and 500mA current rating. Delivering 110mW output power at 275nm, it is specifically designed for efficient water and air purification applications.

Key Features

• 3W power rating with 3535 SMD package
• 265nm UVC wavelength for effective disinfection
• 500mA operating current with high efficiency
• 110mW output power at 275nm
• Ideal for water and air purification systems
• High-performance SMD design for reliable operation

Frequently Asked Questions

Do you supply OEM, ODM service?

Yes, absolutely it can be realized. Learnnew focus on OEM & ODM service more than 7 years.

Are all the pictures real photos?

Yes, the pictures of all products on this page are 100% real shoot by us.

How can I get a quotation from you?

Please kindly leave us messages about your needs, including products parameters, application, your contact way and quantity. Our professional team will reply you in one hour here.

Is there any discount for bulk order?

Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on Alibaba or add Learnnew Opto to "my favorite stores", you will always get our discount and coupon information at the first time.

Do you support drop shipping and how much is the shipping cost?

Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on Alibaba or ask our team.

How to place an order?

You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in minutes.

What payment terms are available?

T/T, PayPal, Western Union and Secure Payment.

What about the lead time?

It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
