10W 395nm UV LED Module SMD6565 for Industrial 3D Printer Exposure Curing

Large Image : 10W 395nm UV LED Module SMD6565 for Industrial 3D Printer Exposure Curing

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Learnew

Payment & Shipping Terms:

Minimum Order Quantity:	100

Contact Now

10W 395nm UV LED Module SMD6565 for Industrial 3D Printer Exposure Curing

Description

Chip Material:	Ingan	Support Dimmer:	No
Color Temperature:	365-420nm	Input Voltage:	6-7V
Lifespan:	10000 Hours	Operating Temperature:	-20 - 60℃
Optical Attenuation:	0.1%	Power:	3W 10W
Power Dissipation:	0.1	Product Weight:	0.1kg
Storage Temperature:	-40 - 100℃	Viewing Angle:	30°/60°/120°
Wavelength:	395	Wavelengths Range:	100–400 Nm
Substrate:	ALN Coppering/Super Aluminum
Highlight:	10W Power UV LED Module , 395nm Wavelength UVA LED Chip , Industrial 3D Printer Curing SMD6565 LED

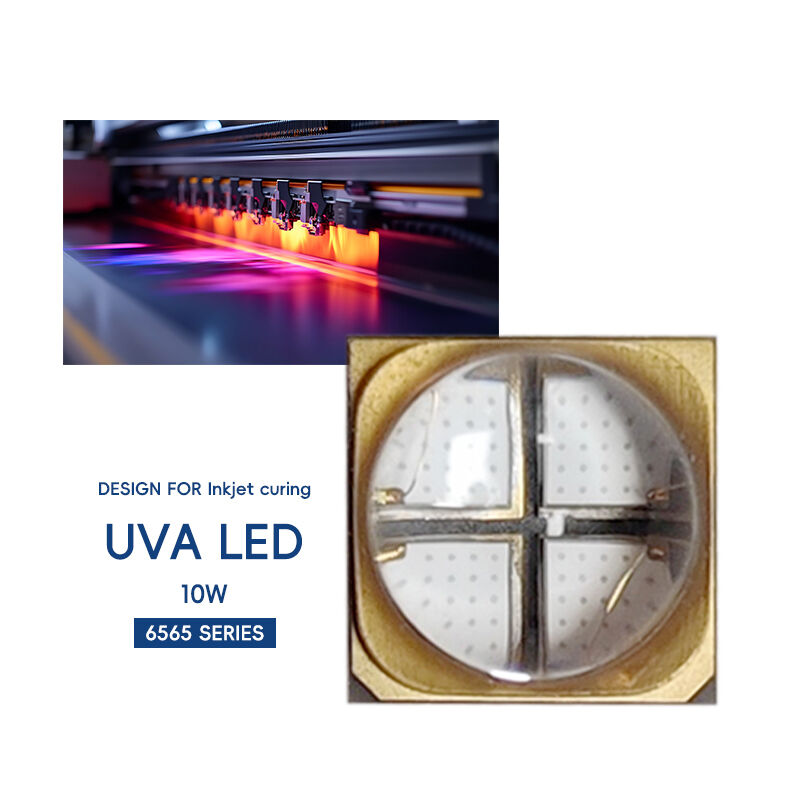

Premium 10W UV LED Module SMD6565 UVA 395nm

High-performance UV LED module designed for industrial 3D offset printer exposure and curing applications. This SMD6565 module delivers reliable 395nm UVA output with 10W power rating for efficient photopolymerization processes.

Product Images

Frequently Asked Questions

Do you supply OEM, ODM service?

Yes, absolutely it can be realized. Learnew focus on OEM & ODM service more than 7 years.

Are all the pictures real photos?

Yes, the pictures of all products on this page are 100% real shoot by us.

How can I get a quotation from you?

Please kindly leave us messages about your needs, including products parameters, application, your contact way and quantity. Our professional team will reply you in one hour here.

Is there any discount for bulk order?

Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on Alibaba or add Learnew Opto to "my favorite stores", you will always get our discount and coupon information at the first time.

Do you support drop shipping and how much is the shipping cost?

Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on Alibaba or ask our team.

How to place an order?

You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in minutes.

What payment terms are available?

T/T, PayPal, Western Union and Secure Payment.

What about the lead time?

It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
