High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications

High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications
High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications

Large Image :  High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications

Product Details:
Place of Origin: Guangdong, China
Brand Name: Learnew Opto
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $75-117
Contact Now

High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications

Description
Chip Material: Algainp Input Voltage: 38-48V
Power: 200w Lifespan: 10000 Hours
Operating Temperature: -20 - 65℃ Viewing Angle: 30°
Wavelength: 365nm, 385nm, 395nm Size: 35*35mm
Optical Power: 84000-98000mW Radiant Intensity: 77000mW/Sr
LED Size: 35*35MM Lens Material: QUARTZ GLASS
Substrate: ALN Coppering Color Rendering: 95 Ra
Support Dimmer: Yes
Highlight:

35*35mm UV LED Chip

,

365nm UV LED

,

385nm UVA LED Chip

High Power 200W 35×35mm 365nm/385nm/395nm 38-48V UVA LED
Product Overview
Specification Value
Input Voltage 38-48V
Warranty 2-Year
Type UVA LED
Support Dimmer YES
Lifespan 10,000 hours
Working Time 10,000 hours
Emitting Color Ultraviolet
Power 200W
Viewing Angle 30 Degrees
Storage Temperature -20°C to 60°C
Whole Size 35×35mm
Optical Power 90,000-105,000mW
Lens Quartz Glass Lens
Wavelength 365nm/385nm/395nm
Certification CE, RoHS
Substrate ALN Coppering
Product Images

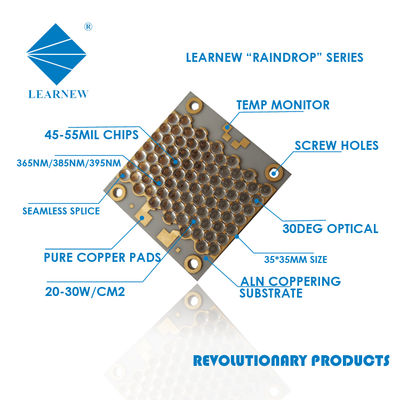

High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications 0
High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications 1
High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications 2

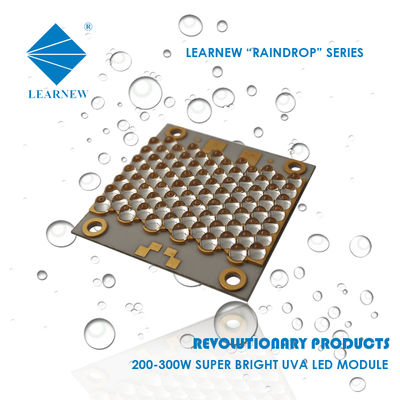

High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications 3
High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications 4

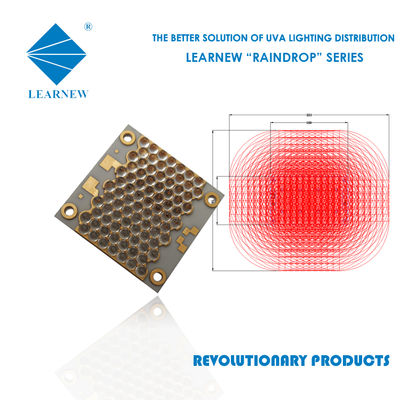

High Power 35*35mm UV LED Chip with 365nm 385nm Wavelength for UV Curing Applications 5
Frequently Asked Questions
Q1: Do you supply OEM/ODM service?
A1: Yes, absolutely it can be realized. We focus on OEM & ODM service for more than 7 years.
Q2: Are all the pictures real photos?
A2: Yes, the pictures of all products on this page are 100% real photos taken by us.
Q3: How can I get a quotation?
A3: Please leave us messages about your needs including product parameters, application, contact information and quantity. Our professional team will reply within one hour.
Q4: Is there any discount for bulk orders?
A4: Yes, we offer wholesale prices for bulk orders and customized products. Follow us on Alibaba to receive discount and coupon information.
Q5: Do you support drop shipping?
A5: Yes, we support drop shipping. Shipping costs are based on your order's volume and weight, which you can check on Alibaba or ask our team.
Q6: How to place an order?
A6: You can place orders directly on Alibaba or contact us for order details. We respond within minutes.
Q7: What payment terms are available?
A7: We accept T/T, PayPal, Western Union and Secure Payment.
Q8: What is the lead time?
A8: Typically 10-15 working days depending on order quantity. Samples can be delivered in 3 days.
