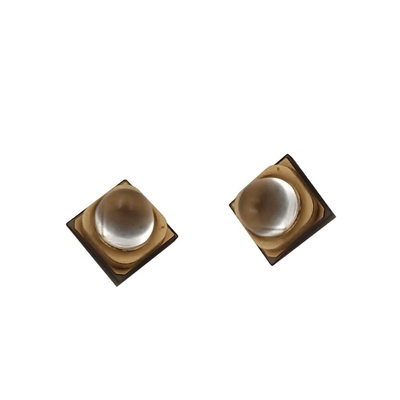

3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing

3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing
3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing 3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing

Large Image :  3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing

Product Details:
Place of Origin: Guangdong, China
Brand Name: Learnew
Payment & Shipping Terms:
Minimum Order Quantity: 100
Contact Now

3W 405nm UVA LED Chip 3.8x3.8mm for UV Curing and Printing

Description
Chip Material: Ingan Input Voltage: 3.4-3.8V
Lifespan: 10000 Hours Operating Temperature: -20 - 60℃
Power: 3W Radiant Intensity: 1050 MW/Sr
Storage Temperature: -40 - 100℃ Viewing Angle: 60°
Wavelength: 405nm, 385nm/395nm/405nm Size: 3.8*3.8MM
Substrate: ALN Coppering/Super Aluminum Optical Attenuation: 0.1%
Power Dissipation: 0.1 Product Weight: 0.1 Kg
Color Temperature: 365-420nm
Highlight:

3W 405nm UV LED chip

,

UV curing LED chip 3.8x3.8mm

,

UVA LED chip for printing

405nm 3W UVA LED SMD 3838 UV-A Led Beads
High-performance UV LED chips for specialized applications
We offer OEM and ODM services to customize any type of LED chip to meet your specific requirements.
405nm 3W UVA LED SMD chip Close-up view of UV LED chip
Product Specifications
Model: LN-SMD3535UV-P1
Parameter Value
Wavelength 395/405nm
Power 3W
Main size 3.5*3.5MM
View angle 120°
Lens Silica
Substrate Ceramic
Warranty 10,000Hrs or 2 years
Applications
  • LED plant growing market
  • UV curing and inkjet curing
  • Photosensitive applications and sterilization
Model: LN-SMD3838UV-P1
Parameter Value
Wavelength 365nm 385nm 395nm 405nm
Power 3W
Main size 3.8*3.8MM
View angle 60°
Lens Quartz glass lens
Substrate ALN Coppering
Warranty 10,000Hrs or 2 years
Model: LN-SMD6868UV-P4
Parameter Value
Wavelength 365nm 385nm 395nm
Power 3W
Main size 6.8*6.8MM
View angle 60°
Lens Quartz glass lens
Substrate ALN Coppering
Warranty 10,000Hrs or 2 years
Application Examples
UV LED application example 1 UV LED application example 2 UV LED application example 3 UV LED application example 4 UV LED application example 5 UV LED application example 6 UV LED application example 7 UV LED application example 8 UV LED application example 9 UV LED application example 10 UV LED application diagram UV LED in production UV LED testing UV LED quality control
Company Information
Our manufacturing facility Product specifications Company overview Company certification
Product Packaging
Product packaging example 1 Product packaging example 2
Frequently Asked Questions
Q1: Do you supply OEM,ODM service?
A1: Yes, absolutely it can be realized. We focus on OEM & ODM service with more than 7 years of experience.
Q2: All the pictures are real photos?
A2: Yes, the pictures of all products on this page are 100% real photos taken by us.
Q3: How can I get a quotation from you?
A3: Please send us your requirements including product parameters, application, contact information and quantity. Our professional team will reply within one hour.
Q4: Is there any discount for bulk order?
A4: Yes, we offer wholesale prices for bulk orders and customized products. Follow us on to receive discount and coupon information.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. Shipping costs are based on your order's volume and weight, which you can check on or ask our team.
Q6: How to place an order?
A6: You can place orders directly on or contact us for order details. We will respond promptly.
Q7: What payment terms are available?
A7: We accept T/T, PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: Standard lead time is 10-15 working days, depending on order quantity. Samples can be delivered in 3 days.
