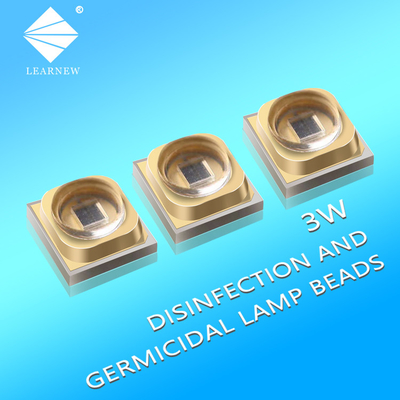

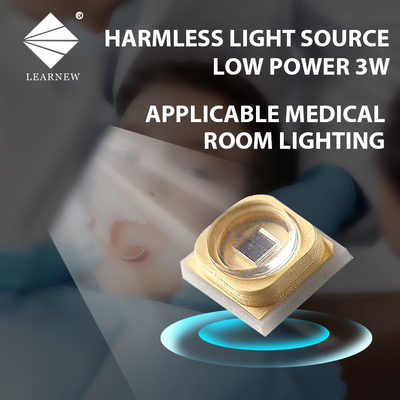

3W 5W 7W UVB LED CHIP Specification
| UV-C |
POWER |
Dominant Wavelength |
Optical Power |
IF |
VF |
WHOLE SIZE |
VIEW ANGLE |
LENS |
SUBSTRATE |
Life span |
JUNCTION TEMPERATURE |
CHIPS |
| LN-SMD3535UVC-P3 |
3-5W |
270-280nm |
80-120mW |
500-700mA |
5-7V |
3.5*3.5MM |
120° |
QUARTZ GLASS LENS |
ALN Coppering |
LM70=5000Hrs
LM50=10000Hrs |
60C |
Flip Chip
(PW or LG) |
| 260-270nm |
80-120mW |
| 250-260nm |
80-120mW |
| LN-SMD3535UVC-P3D |
3W |
270-280nm |
50-70mW |
350-500mA |
5-7V |
3.5*3.5MM |
120° |
QUARTZ GLASS LENS |
ALN Coppering |
60C |
| 260-270nm |
50-70mW |
| 250-260nm |
50-70mW |

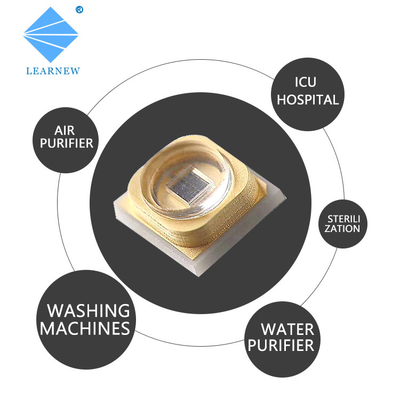

Application
- ICU Hospital
- Air purifier
- Water purifier
- Washing machines
- Sterilization...
Design Advantage
- Quartz glass package
- High radiant flux
- Narrow Wavelength
- Inorganic & Nitrogen package
- Low thermal resistance
About Learnew opto and brand story
Dedicated to efficient agriculture with LED technology
Engaged in LED products manufacture, R&D and market nearly decade years, Support OEM & ODM
Learnew own 8 automatic production lines, 2 industry level laboratories to support both LED components(SMD LED & LED COB) and LED grow light
Professional foreign trade sales team, the average member of more than 3 years of relevant work experience
Market cover North America, European, South America and Southeast Asian
Famous customers include TOSHIBA LIGHTIN, FLEXTRONICS...
Learnew project team with more than 3 years experience of big greenhouse bu
Payment Term&Delivery time
1,All advanced payment is needed before start design and production.
2,Delivery in 2-4 Weeks after payment comfirmed; delivery in 1-3Working days if enoug.
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
