3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
August 25, 2023, I purchased UVA LED chips from Learnew. Learnew delivered the custom UVA chips we requested quickly and with excellent workmanship. It was a pleasure to work with Learnew. He was able to tell me exactly which product would work with my curing printer, saving me a lot of time. They are very professional.

—— Ashraf Trading

October 13, 2023,I received a customized 3535 COB LED Chip .Their attention to detail, timely responses, and on-time delivery have exceeded my expectation.The sample I received is what I need, very bright, I will choose LEARNEW for a long time in the future

—— Hector Bustillo

March 2024,Just received the product and have tried it,The design of these Hight LED chips is outstanding. They are compact, easy to install, and provide excellent illumination. I am extremely satisfied with their performance!

—— Fabio Antista

I am thoroughly impressed with the functionality of these UV LED chips. They offer reliable UV output, high efficiency, and a long lifespan. A great investment for any UV application!

—— Ali Muhammad

I'm Online Chat Now

3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization

3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization
3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization
3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization 3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization 3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization 3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization 3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization 3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization

Large Image :  3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization

Product Details:
Place of Origin: China
Brand Name: Learnew Opto
Certification: RoHS
Model Number: LN-SMD3535UVC-P1/LN-SMD3535UVC-P1D/LN-SMD3535UVC-P0.5
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Anti-static Blister Packing
Delivery Time: 15-45 working days
Payment Terms: L/C, T/T
Supply Ability: 99999pcs

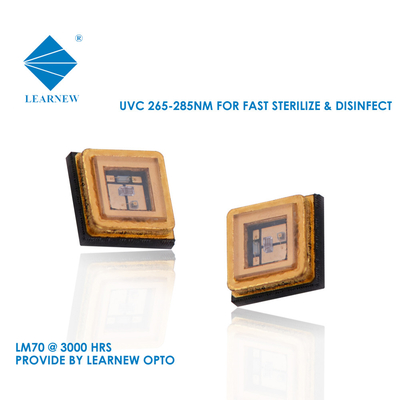

3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization

Description
Item: UVC LED Chips POWER: 0.5W/1W
Dominant Wavelength: 250NM-280NM Optical Power: 20-30mW
IF: 100mA (max=150mA) VF: 5-7V
WHOLE SIZE: 3.5*3.5MM VIEW ANGLE: 120°
LENS: QUARTZ GLASS LENS SUBSTRATE: ALN Coppering
Life Span: LM70=5000Hrs LM50=10000Hrs JUNCTION TEMPERATURE: 60C
Highlight:

3535 UVC LED Chips

,

UVC LED Chips For Sterilization

,

280nm 3535 uvc led

UVC LED chips 3535 0.5W-1W Narrow Wavelength 250nm-280nm High Optical Power UVC LED Chips for sterilization

0.5W-1W UVC LED CHIPS PARAMETERS

UV-C POWER Dominant Wavelength Optical Power IF VF WHOLE SIZE VIEW ANGLE LENS SUBSTRATE Life span JUNCTION TEMPERATURE
LN-SMD3535UVC-P1 1W 270-280nm 20-30mW 100mA
(max=150mA)
5-7V 3.5*3.5MM 120° QUARTZ GLASS LENS ALN Coppering LM70=5000Hrs
LM50=10000Hrs
60C
260-270nm 20-30mW
250-260nm 20-30mW
LN-SMD3535UVC-P1D 270-280nm 15-20mW 100mA
260-270nm 15-20mW
250-260nm 15-20mW
LN-SMD3535UVC-P0.5 0.5W 270-280nm 8-12mW 50mA
(max=60mA)
260-270nm 8-12mW
250-260nm 8-12mW

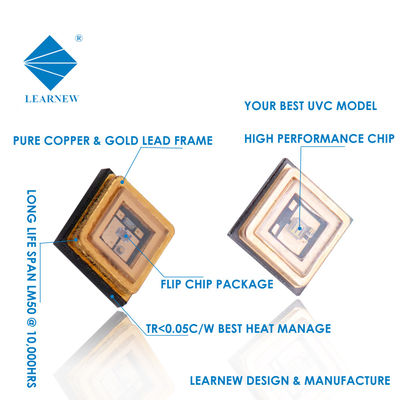

UVC LED Chips Design Advantage

1,Quartz glass package
2,High radiant flux
3,Narrow Wavelength
4,Inorganic & Nitrogen package
5,Low thermal resistance



UVC Chips Appilcation

1.ICU Hospital
2.Air purifier
3.Water purifier
4.Washing machines
5.Sterilization...

3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization 0

3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization 1

3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization 2

3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization 3

3535 UVC LED Chips 0.5W-1W Narrow Wavelength 250nm-280nm For Sterilization 4

FAQ

Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized.

Q2: All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).

Q4: Is there any discount for bulk order?

A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.

Q5: Do you support drop shipping and how much is the shippping cost?

A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.

Q6: How to place an order?

A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).

Q7: What payment terms are available?

A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?

A8: It depends on the order quantity. In general, lead time is about 3-75working days. For samples, the delivery could be as fast as same day.
