200w 400w 3535 Uv Led Chips 120 Degree View Angle

200w 400w 3535 Uv Led Chips 120 Degree View Angle
200w 400w 3535 Uv Led Chips 120 Degree View Angle
200w 400w 3535 Uv Led Chips 120 Degree View Angle 200w 400w 3535 Uv Led Chips 120 Degree View Angle 200w 400w 3535 Uv Led Chips 120 Degree View Angle 200w 400w 3535 Uv Led Chips 120 Degree View Angle 200w 400w 3535 Uv Led Chips 120 Degree View Angle

Large Image :  200w 400w 3535 Uv Led Chips 120 Degree View Angle

Product Details:
Place of Origin: China
Brand Name: Learnew Opto
Certification: RoHS CE
Model Number: LN-CVS35UV-P84-A
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Anti-static Blister Packing
Delivery Time: 7-45 working days
Payment Terms: L/C, T/T,Paypal
Supply Ability: 200000PCS/Monthly

200w 400w 3535 Uv Led Chips 120 Degree View Angle

Description
Power: 200W Whole Size: 35*35MM
IF: 5000mA (Max=7A) VF: 38-48V
View Angle: 120° Lighting Area: 22*35MM
Highlight:

200w uv led chips

,

3535 uv led chips

,

400w uv led chip

200W 400W UVA LED 3535 High Optical Power Multi wavelength 365nm 385nm 395nm 38-48V uva led chips for uv curing

UVA 200W 3535 LED COB

Products Descriptions

Wattage 200W
Wavelength 365nm;385nm;395nm
Whole Size 35*35MM
Lighting Area 22*35MM
LENS QUARTZ GLASS LENS
View Angle 30°
Circuit 12S7P
Design Advantages 1,Long life span
2,low thermal resistance
3,High effiency 40%-50%
4,Ingorganic encapsulation
5,High density and intensity
6,Screw free assemble for high power curing use
7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
8,Special view angle in 30DEG or 120DEG
IF 5000mA (Max=7A)
VF 38-48V
Substrate ALN Coppering
Application 1, UV curing
2, LED growing market
3, Offset printer
4, 3D printer
5, Exposure machines
6, Inkjet printer
7, High intensity curing Market like 3KW,7kW,15KW...

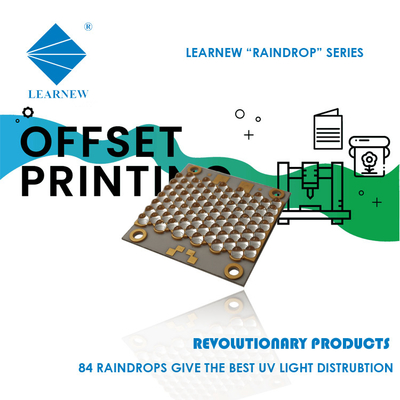

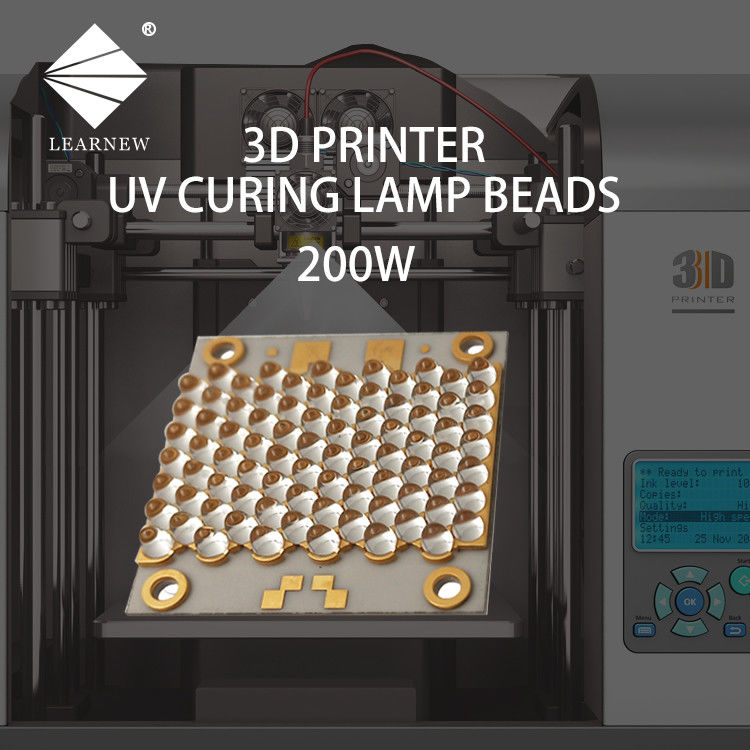

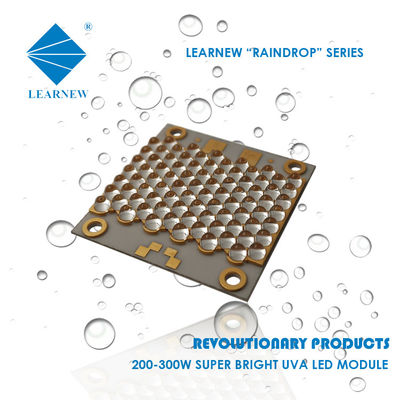

Images of 200W UVA LED COB

200w 400w 3535 Uv Led Chips 120 Degree View Angle 0

200w 400w 3535 Uv Led Chips 120 Degree View Angle 1

200w 400w 3535 Uv Led Chips 120 Degree View Angle 2

200w 400w 3535 Uv Led Chips 120 Degree View Angle 3

Factory

200w 400w 3535 Uv Led Chips 120 Degree View Angle 4

FAQ:

Q1: Do you supply OEM,ODM service? A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our
professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and
weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us
for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
could be 3 days.
