300w Uv Chip Multi Wavelength 365nm 385nm 395nm 405nm

Large Image : 300w Uv Chip Multi Wavelength 365nm 385nm 395nm 405nm

Product Details:

Place of Origin:	CHINA
Brand Name:	LEARNEW OPTO
Certification:	CE/RoHs
Model Number:	LN-CVS35UV-P120-A

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	Negotiable
Packaging Details:	Anti-static Blister packing
Delivery Time:	1-7 working days for samples, 1-4Weeks for quantity Order
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500,000PCS per month

Contact Now

300w Uv Chip Multi Wavelength 365nm 385nm 395nm 405nm

Description

Name:	UV LED CHIP	IF:	8400mA (Max=12A)
VF:	34-38V	SIZE:	35*35MM
Lighting Area:	22*35MM	Warranty:	2 Years
Highlight:	300w uv chip , 385nm uv chip , 365 nm led chip 300w

3535 UVA LED Chips 200W 300W Multi wavelength 365nm 385nm 395nm 405nm for UV Curing Market

3535 UV LED details

UV-A

POWER

Dominant Wavelength

Optical Power

Circuit

WHOLE SIZE

Lighting Area

VIEW ANGLE

LENS

SUBSTRATE

CHIPS

LN-CVS35UVH-P120-A
(Hybrid version)

300W

395nm 50%
385nm 50%

122000-145000mW

8400mA
(Max=12A)

34-38V

10S12P

35*35MM

22*35MM

30°

QUARTZ GLASS LENS

ALN Coppering

VERTICAL
(LG or SEOUL SEMI)

LN-CVS35UV-P120-A

300W

365nm

95000-110000mW

385nm

120000-140000mW

395nm

125000-150000mW

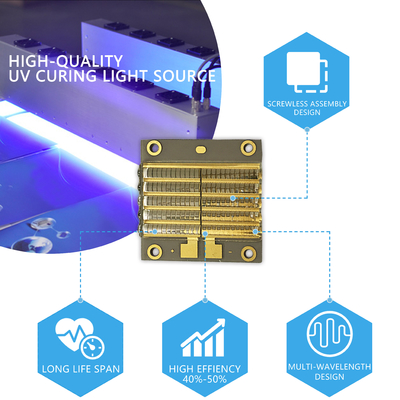

UV LED CHIP Design Advantage

Long life span
low thermal resistance
High effiency 40%-50%
Ingorganic encapsulation
High density and intensity
Screw free assemble for high power curing use
Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
Special view angle in 30DEG or 120DEG

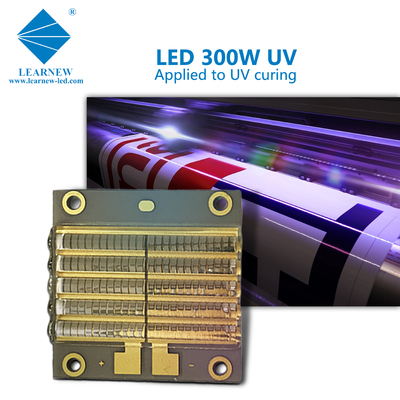

3535 UV CHIPAppilcation

UV curing
LED growing market
Offset printer
3D printer
Exposure machines
Inkjet printer
High intensity curing Market like 3KW,7kW,15KW...

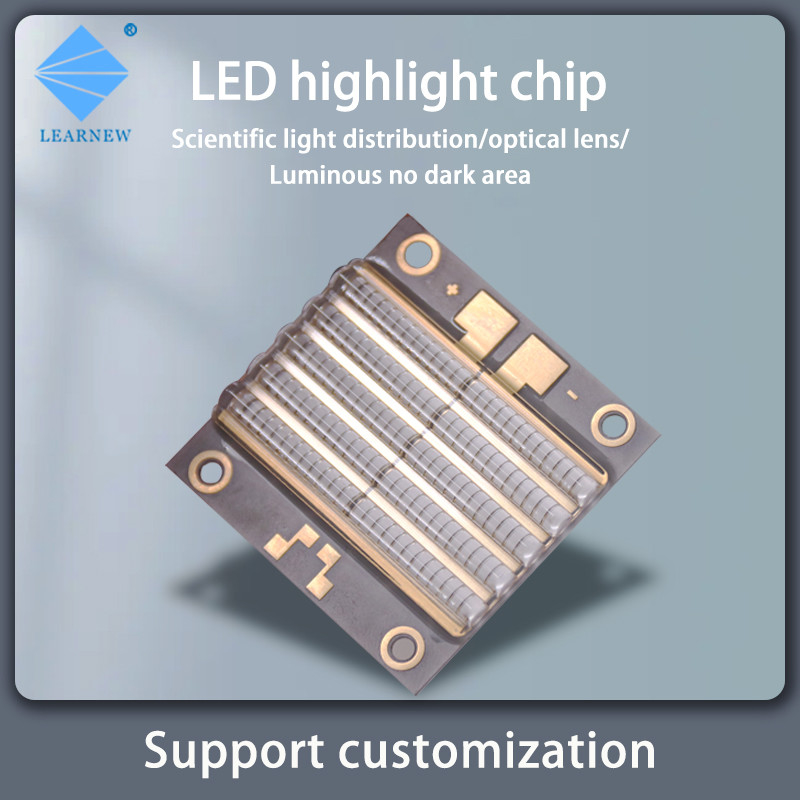

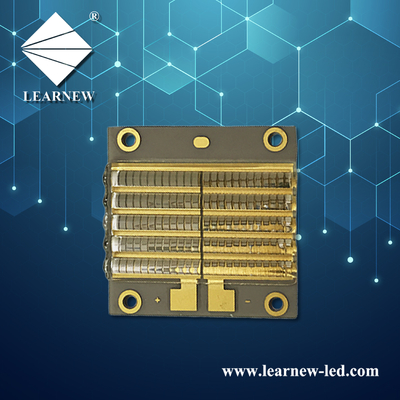

UV LED Diode Picture

LED CHIP FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
