High Optical Power Uv Led Chips Purple Luminous 254 Nm

High Optical Power Uv Led Chips Purple Luminous 254 Nm
High Optical Power Uv Led Chips Purple Luminous 254 Nm High Optical Power Uv Led Chips Purple Luminous 254 Nm High Optical Power Uv Led Chips Purple Luminous 254 Nm

Large Image :  High Optical Power Uv Led Chips Purple Luminous 254 Nm

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW OPTO
Certification: CE/RoHs
Model Number: LN-CVB80UV-P50
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Anti-static Blister packing
Delivery Time: 1-7 working days for samples, 1-4Weeks for quantity Order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500,000PCS per month
Contact Now

High Optical Power Uv Led Chips Purple Luminous 254 Nm

Description
Product Name: UV LED CHIP POWER: 125W
Dominant Wavelength: 365nm/385nm/395nm IF: 3500mA (Max=5A)
VF: 34-38V WHOLE SIZE: 80*25MM
Lighting Area: 80*10MM VIEW ANGLE: 120°
Highlight:

high optical power uv led chips

,

uv led chips 254 nm

,

purple luminous 254 nm led chip

High Power UVA UVB UVC 20W 50W 100W 125W 200W LED Array 3535 3838 8025 UVA 365nm 395nm 405nm UVA LED Chip for UV Curing



8025 UV LED Product specification

model POWER Dominant Wavelength Optical Power IF Circuit WHOLE SIZE Lighting Area VIEW ANGLE LENS SUBSTRATE CHIPS
LN-CVB80UV-P50 125W 365nm 38000-44000mW 3500mA
(Max=5A)		 10S5P 80*25MM 80*10MM 120° QUARTZ GLASS LENS Super Aluminum VERTICAL
(SA or SEOUL SEMI)
385nm 48000-56000mW
395nm 50000-58000mW

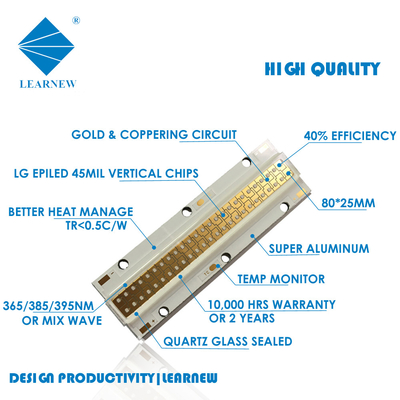

chip led uv Design Advantage

  • Long life span
  • low thermal resistance
  • High effiency 40%-50%
  • Ingorganic encapsulation
  • High density and intensity
  • Screw free assemble for high power curing use



395NM uv led chip Appilcation

  • UV curing
  • LED growing market
  • Offset printer
  • 3D printer
  • Exposure machines
  • Inkjet printer

High Optical Power Uv Led Chips Purple Luminous 254 Nm 0

High Optical Power Uv Led Chips Purple Luminous 254 Nm 1

High Optical Power Uv Led Chips Purple Luminous 254 Nm 2
