Product Details:
|
| Color: | Ultraviolet | Peak Wavelength: | 365nm/385nm/395nm |
|---|---|---|---|
| Input Current: | 1400mA (Max=2A) | Size: | 6.8*6.8MM |
| Circuit: | 2S2P | View Angle: | 60 |
| Electrical Power: | 10W | Input Voltage: | 6.0-7.0V |
| High Light: | 6868 uvc led chip,10w uvc led chip,uvc 395 nm led chip |
||

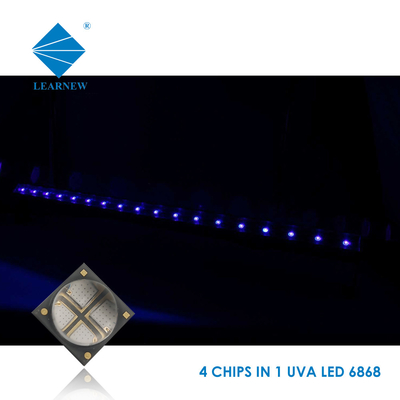

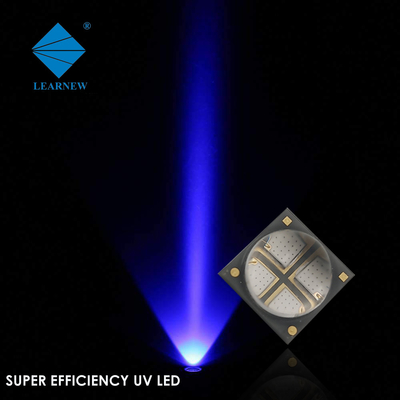

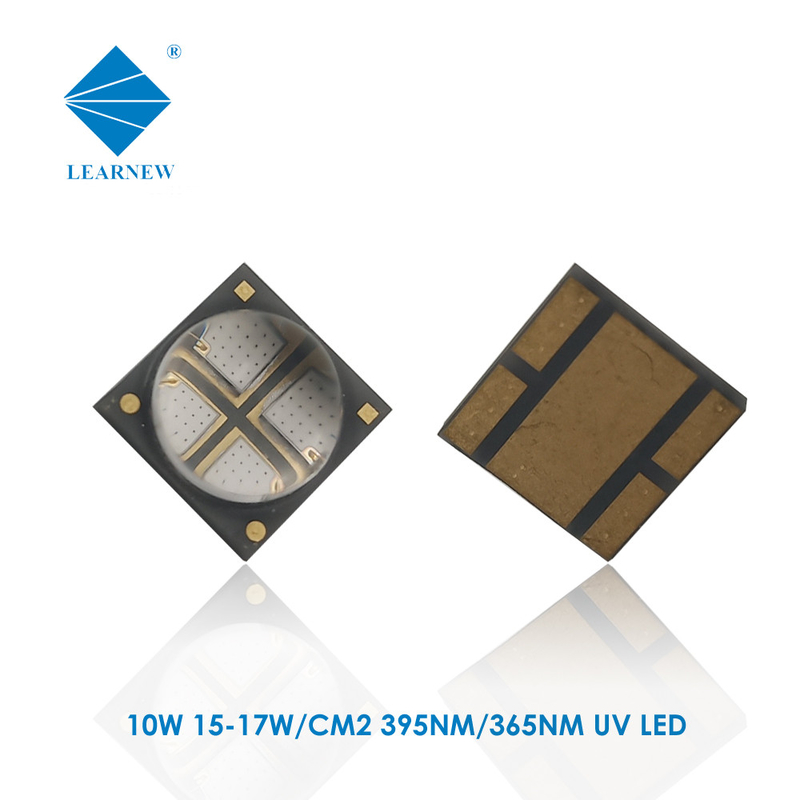

6868 Uv Led Chip 365nm 385nm 395nm 10W UV LED For 3D Printer Curing UV Curing LED Plant Growing Market
UVA LED CHIP Product Specifications
| models | LN-SMD6868UV-P4 | LN-SMD6868UV-P4E |
|---|---|---|
| Electronic power | 10W | 10W |
| Peak wavelength |
UV=365nm UV=385nm UV=395nm |
UV=365nm UV=385nm UV=395nm |
| Radiant power | 3200-5000mW | 2600-4000mW |
| Working current |
1400mA(Max=2A) |
1400mA(Max=2A) |
| Working voltage | 6.0-7.0V | 6.0-7.0V |
| Circuit | 2S2P | 2S2P |
| LED Diode size | 6.8*6.8MM | 6.8*6.8MM |
| LENS | Quartz Glass | Quartz Glass |
| View angle | 60DEG | 60DEG |
| Substrate design | ALN coppering | ALN coppering |

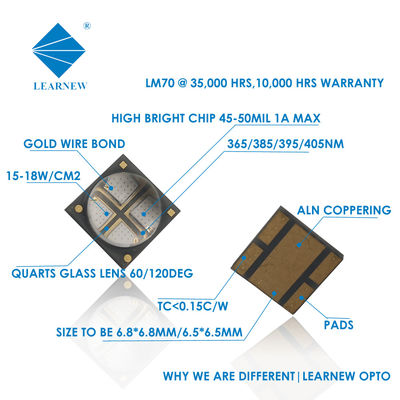

6868 UV LED CHIP Design Advantage
1,Long life span
2,low thermal resistance
3,High effiency 40%-50%
4,Ingorganic encapsulation
UV High Power LED Appilcation
1,LED plant Growing Market
2,UV curing,Inkjet curing
3,Offset printer,3D printer and Exposure curing
6868 LED chip FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples, the delivery could be as fast as same day.
We have professional laboratories and researchers, and carry out a large number of experiments and tests on the ratio of lamp beads to ensure the scientific and effective. We warmly welcome to send us the engineering drawing of your project to get the solutions for you.
