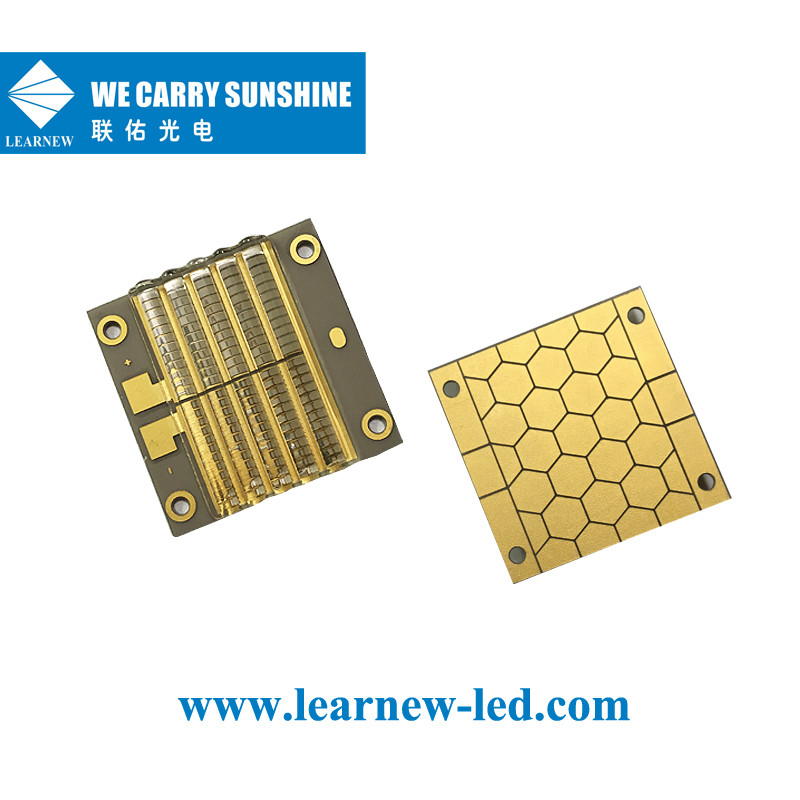

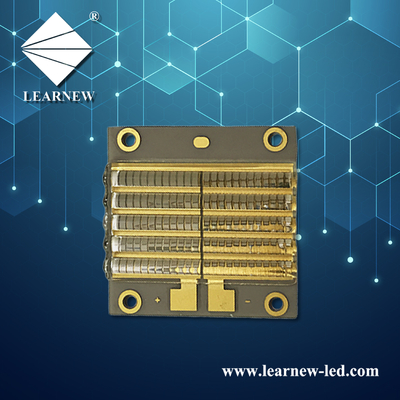

365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped

365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped
365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped
365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped 365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped 365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped 365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped 365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped 365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped 365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped 365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped

Large Image :  365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped

Product Details:
Place of Origin: China
Brand Name: Learnew Opto
Certification: CE/ROHS
Model Number: LN-CVS35UVH-P120-A
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Choose packaging materials with better cushioning and protection effect. For lamps with higher value or lamps with more glass surface, we use the outer box and add a wooden box or wooden frame to the packaging.
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 600000
Contact Now

365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped

Description
Name: LN-CVS35UVH-P120-A POWER: 300W
Wavelength: 385nm SIZE: 22*35MM
VIEW ANGLEcacy: 30° LENS: QUARTZ GLASS LENS
Highlight:

Quartz Glass Lens 300w LED Chip

,

UVA 300w LED Chip

,

2235 UV LED Chips

Learnew Oem Odm Factory UVA 300w 385nm 125000-150000mW 2235 Wave shaped Led  for Disinfection LED Lamp



 UVA LED chip Product specification



UV-A POWER Dominant Wavelength Optical Power IF VF Circuit WHOLE SIZE Lighting Area VIEW ANGLE LENS SUBSTRATE CHIPS Warranty
LN-CVS16UV-P42 100W 365nm 33500-38000mW 2100mA
(Max=3A)		 48-54V 14S3P 16*16MM R15MM 60-90° QUARTZ GLASS LENS ALN Coppering VERTICAL
(SA or SEOUL SEMI)		 10,000Hrs
or 2 years
385nm 40000-48000mW
395nm 42000-50000mW
LN-CVS35UV-P45 110W 365nm 35000-41000mW 2100mA
(Max=3A)		 51-56V 15S3P 35*35MM 20*35MM 120° QUARTZ GLASS LENS Super Aluminum VERTICAL
(SA or SEOUL SEMI)
385nm 44000-52000mW
395nm 45000-54000mW
LN-CVB80UV-P50 125W 365nm 38000-44000mW 3500mA
(Max=5A)		 34-38V 10S5P 80*25MM 80*10MM 120° QUARTZ GLASS LENS Super Aluminum VERTICAL
(SA or SEOUL SEMI)
385nm 48000-56000mW
395nm 50000-58000mW
LN-CVS17UVH- P48
(Hybrid version)		 126W 365nm 25%
395nm 25%
420nm 25%
365nm 25%		 48000-54000mW 8400mA
(Max=12A)		 13-16V 4S12P 20*17MM 10*17MM 120° QUARTZ GLASS LENS ALN Coppering VERTICAL
(LG or SEOUL SEMI)
LN-CVS17UV- P48 365nm 38000-42000mW
385nm 48000-54000mW
395nm 50000-56000mW

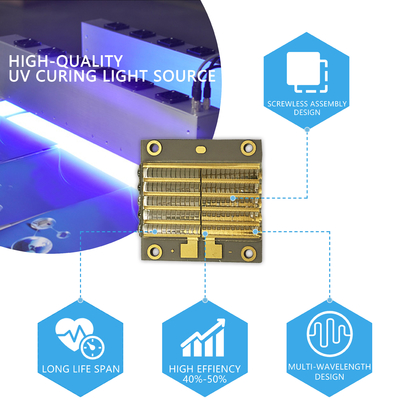

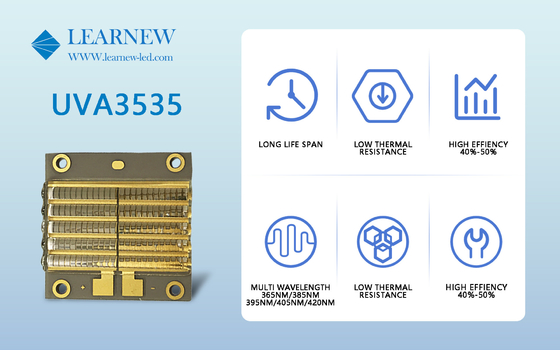

  LED​ Chip Design Advantage

  • Long life span
  • low thermal resistance
  • High effiency 40%-50%
  • Ingorganic encapsulation
  • High density and intensity.
  • Screw free assemble for high power curing use
  • Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
  • Special view angle in 30DEG or 120DEG

 LED Chip Application

  • UV curing
  • LED growing market
  • Offset printer
  • 3D printer
  • Inkjet printer
  • High intensity curing Market like 3KW,7kW,15KW...



365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped 0

365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped 1

365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped 2



365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped 3

365nm 385nm 395nm UVA 300w LED Chip 34-38V 2235 Wave Shaped 4
