UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens

UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens
UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens
UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens

Large Image :  UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens

Product Details:
Place of Origin: China
Brand Name: Learnew Opto
Certification: CE/ROHS
Model Number: LN-CVS35UVH-P84-A
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Choose packaging materials with better cushioning and protection effect. For lamps with higher value or lamps with more glass surface, we use the outer box and add a wooden box or wooden frame to the packaging.
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 600000
Contact Now

UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens

Description

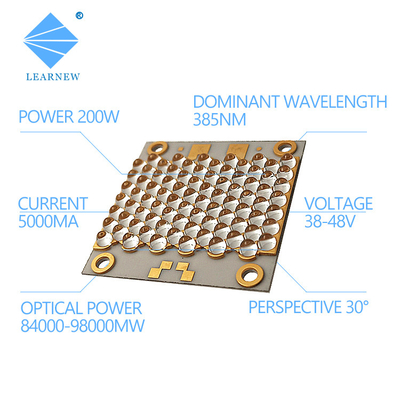

Name: LN-CVS35UVH-P84-A POWER: 200W
Wavelength: 385nm SIZE: 35*35MM
VIEW ANGLEcacy: 30° LENS: QUARTZ GLASS LENS
Highlight:

UVA 200w LED Chip

,

Quartz Glass Lens 200w LED Chip

,

200w 3535 LED Chip

Learnew Oem Odm Factory UVA 200w 385nm 87000-98000mw 3535 for Disinfection LED Lamp

 UVA LED chip Product specification



UV-A POWER Dominant Wavelength Optical Power IF VF Circuit WHOLE SIZE Lighting Area VIEW ANGLE LENS SUBSTRATE CHIPS
LN-CVS35UVH-P84-A
(Hybrid version)		 200W 395nm 50%
385nm 50%		 87000-98000mW 5000mA
(Max=7A)		 38-48V 12S7P 35*35MM 22*35MM 30° QUARTZ GLASS LENS ALN Coppering VERTICAL
(LG or SEOUL SEMI)
LN-CVS35UV-P84-A 200W 365nm 67000-77000mW
385nm 84000-98000mW
395nm 90000-105000mW

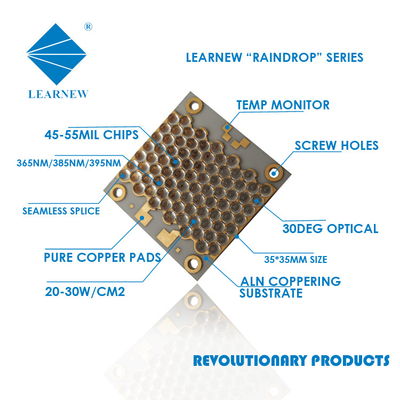

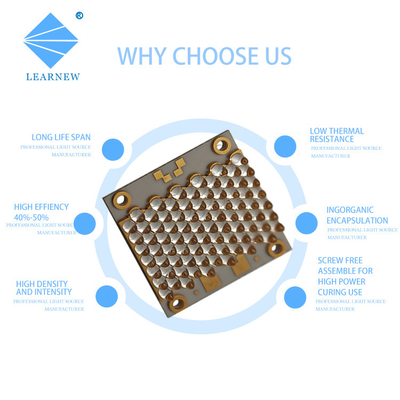

  LED​ Chip Design Advantage

  • Long life span
  • low thermal resistance
  • High effiency 40%-50%
  • Ingorganic encapsulation
  • High density and intensity.
  • Screw free assemble for high power curing use
  • Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
  • Special view angle in 30DEG or 120DEG

 LED Chip Application

  • UV curing
  • LED growing market
  • Offset printer
  • 3D printer
  • Inkjet printer
  • High intensity curing Market like 3KW,7kW,15KW...



UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens 0

UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens 1

UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens 2

UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens 3

UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens 4

UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens 5

UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens 6

UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens 7

UVA 385nm 200w LED Chip , 3535 LED Chip With Quartz Glass Lens 8











Full Spectrum LED Grow Lights LED CHIP FAQ

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3:How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
