Product Details:
|
| Power: | 200W/400W/600W | Dominant Wavelength: | 365nm/385nm/395nm |
|---|---|---|---|
| SUBSTRATE: | ALN Coppering | IF: | 5000mA (Max=7A)/10A (Max=15A) |
| VF: | 38-48V | WHOLE SIZE: | 35*35MM |
| Lighting Area: | 22*35MM | VIEW ANGLE: | 30° |
| High Light: | UV LED Chips 600W,UV LED Chips 5000mA,ALN Coppering 200W LED Chip |
||

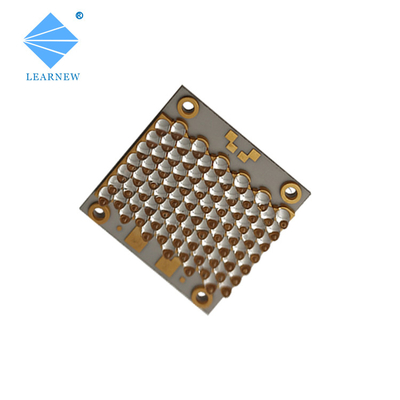

UVA LED 200W-600W 365nm 385nm 395nm rain drop model uv led chips for uv curing
Water drop UVA Parameters
| UV-A | POWER | Dominant Wavelength | Optical Power | IF | VF | Circuit | WHOLE SIZE | Lighting Area | VIEW ANGLE | LENS | SUBSTRATE | CHIPS | Warranty |
| LN-CVS35UV-P84H-A | 400-600W | 365nm | 160000-180000mW | 10A (Max=15A) |
38-48V | 12S7P | 35*35MM | 22*35MM | 30° | QUARTZ GLASS LENS | ALN Coppering | VERTICAL (LG or SEOUL SEMI) |
10,000Hrs or 2 years |
| 385nm | 180000-208000mW | ||||||||||||
| 395nm | 180000-208000mW | ||||||||||||
| LN-CVS35UVH-P84-A (Hybrid version) |
200W | 395nm 50% 385nm 50% |
87000-98000mW | 5000mA (Max=7A) |
38-48V | 12S7P | 35*35MM | 22*35MM | 30° | QUARTZ GLASS LENS | ALN Coppering | VERTICAL (LG or SEOUL SEMI) |
|
| LN-CVS35UV-P84-A | 200W | 365nm | 67000-77000mW | ||||||||||
| 385nm | 84000-98000mW | ||||||||||||
| 395nm | 90000-105000mW |
Rain drop UVA Design Advantage
1,Long life span
2,low thermal resistance
3,High effiency 40%-50%
4,Ingorganic encapsulation
5,High density and intensity
6,Screw free assemble for high power curing use
7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
8,Special view angle in 30DEG or 120DEG
Rain drop UVA Appilcation
1,UV curing
2,LED growing market
3,Offset printer
4,3D printer
5,Exposure machines
6,Inkjet printer
7,High intensity curing Market like 3KW,7kW,15KW
