Product Details:
|
| IF: | 350mA (Max=500mA) | Dominant Wavelength: | 290-315nm |
|---|---|---|---|
| SUBSTRATE: | ALN Coppering | JUNCTION TEMPERATURE: | 60-80C |
| VF: | 4-5V | Power: | 3W-5W |
| WHOLE SIZE: | 3.5*3.5MM | VIEW ANGLE: | 120° |
| High Light: | High Radiant Flux UV LED Chip,3W 3535 UV LED Chip,ALN Coppering UVB LED Chip |
||
High radiant flux 3W 3535 290nm 306nm 310nm ALN Coppering UV LED Chip
UVB LED Chip Product Specifications
| models | LN-SMD3535UVB-P3 | LN-SMD3535UVB-P3D |
|---|---|---|
| Electronic power | 3.0-5.0W | 3.0W |
| Dominant wavelength | 290-315nm | 290-315nm |
| Optical power | 80-120mW | 50-70mW |
| Working current | 350-700mA | 350-500mA |
| Working voltage | 4.0-5.0V | 4.0-5.0V |
| Circuit | 1 chip | 1 chip |
| LED Diode size | 3.5*3.5mm | 3.5*3.5mm |
| LENS | Quartz Glass | Quartz Glass |
| View angle | 120DEG | 120DEG |
| Substrate design | ALN coppering | ALN coppering |
| Life span(LM50) | 10,000 hrs |
10,000 hrs |
UVB Chip Appilcation:
Design Advantage:

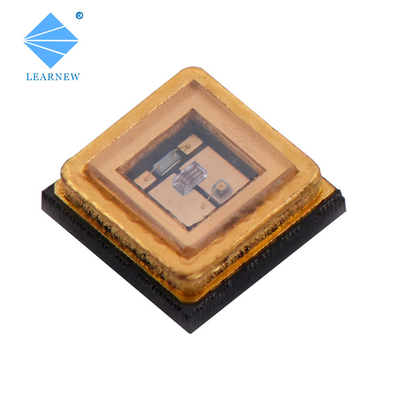

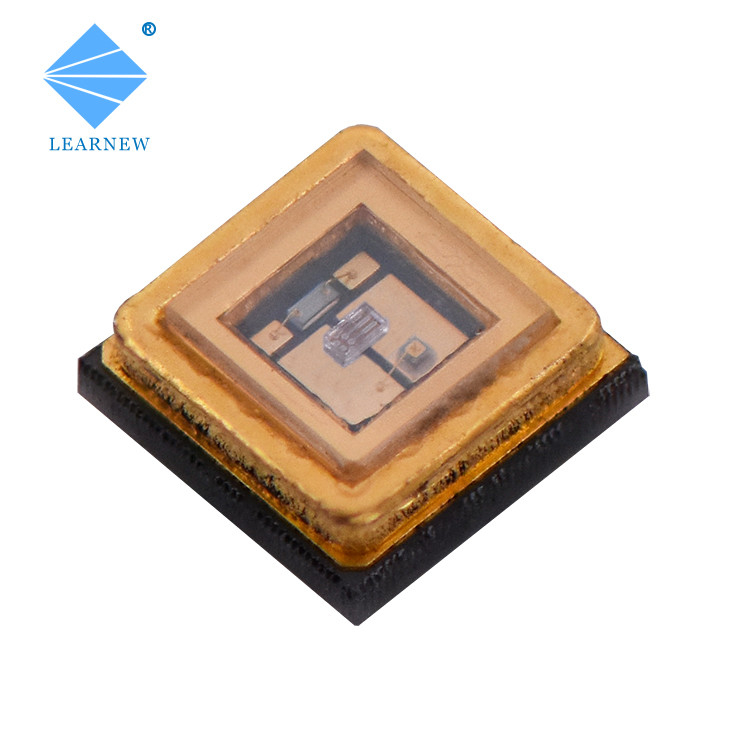

UVB LED Pictures:
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 3-75working days. For samples, the delivery could be as fast as same day.
