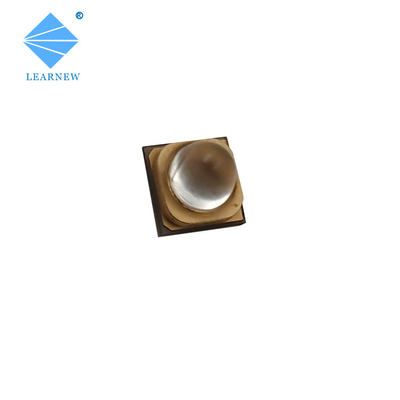

Photometer And Photosensitive80-120mW SMD UVB LED Chip 3W 340-350nm 3.8x3.8mm

Photometer And Photosensitive80-120mW SMD UVB LED Chip 3W 340-350nm 3.8x3.8mm
Photometer And Photosensitive80-120mW SMD UVB LED Chip 3W 340-350nm 3.8x3.8mm
Photometer And Photosensitive80-120mW SMD UVB LED Chip 3W 340-350nm 3.8x3.8mm Photometer And Photosensitive80-120mW SMD UVB LED Chip 3W 340-350nm 3.8x3.8mm Photometer And Photosensitive80-120mW SMD UVB LED Chip 3W 340-350nm 3.8x3.8mm

Large Image :  Photometer And Photosensitive80-120mW SMD UVB LED Chip 3W 340-350nm 3.8x3.8mm

Product Details:
Place of Origin: Shenzhen，China
Brand Name: Learnew
Certification: CE, ROHS
Model Number: LN-SMD3838UVB-P3
Payment & Shipping Terms:
Minimum Order Quantity: 5000
Price: USD$5.0-$10.0/PCS(Negotiable)
Packaging Details: Samples packing method can be in a Antistatic bag, Anti-static plate in deal with empty space, or Circle up with foam. Order packing method will be Anti-static plate in deal with empty space.
Delivery Time: 1-4 working weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000000pcs per month
Contact Now

Photometer And Photosensitive80-120mW SMD UVB LED Chip 3W 340-350nm 3.8x3.8mm

Description
Power: 3W Optical Power: 80-120mW
VF: 4-5V Whole Size: 3.8*3.8mm
View Angle: 120° Dominant Wavelength: 340-350nm
Highlight:

3.8x3.8mm UVB LED Chip

,

UVB LED Chip SMD

,

120mW UV LED Chips

3W 340-350nm 3.8*3.8mm UVB 80-120mW 3838 SMD UVB LED Chip for Photometer and Photosensitive



Power 3W
IF 350mA(Max=700mA)
VF 4-5V
Whole Size 3.8*3.8mm
Dominant Wavelength 340-350nm
View Angle 120°
Lens Quartz Glass Lens
Substrate ALN Coppering
Chips Flip Chip(LG & Dowa)
Warranty 10,000Hrs or 2 years
Optical Power 80-120mW



SMD UVB LED Chip Design Advantage:



1, Quartz glass package
2, High radiant flux
3, Narrow Wavelength

4, Inorganic & Nitrogen package
5, Low thermal resistance



3.8*3.8mm SMD UVB LED Chip Appilcation:



1, Photometer

2, Curing and Coating

3, Medical instruments

4, Photosensitive



Photometer And Photosensitive80-120mW SMD UVB LED Chip 3W 340-350nm 3.8x3.8mm 0



Photometer And Photosensitive80-120mW SMD UVB LED Chip 3W 340-350nm 3.8x3.8mm 1

Photometer And Photosensitive80-120mW SMD UVB LED Chip 3W 340-350nm 3.8x3.8mm 2







Shenzhen Learnew Optoelectronic China Committed to research and innovation, and provide customized products and customized services.
