Product Details:
|
| Power: | 3W | Optical Power: | 80-120mW |
|---|---|---|---|
| VF: | 4-5V | Whole Size: | 3.8*3.8mm |
| View Angle: | 120° | Dominant Wavelength: | 340-350nm |
| High Light: | 120mW SMD LED Chip,SMD LED Chip For Curing,UV LED Chips 3.8x3.8mm |
||

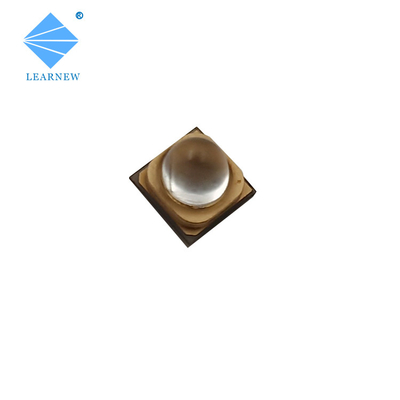

3838 UVB 3W 340-350nm 80-120mW Optical Power 3.8*3.8mm UVB SMD LED Chip for Curing and Coating
| Power | 3W |
| IF | 350mA(Max=700mA) |
| VF | 4-5V |
| Whole Size | 3.8*3.8mm |
| Dominant Wavelength | 340-350nm |
| View Angle | 120° |
| Lens | Quartz Glass Lens |
| Substrate | ALN Coppering |
| Chips | Flip Chip(LG & Dowa) |
| Warranty | 10,000Hrs or 2 years |
| Optical Power | 80-120mW |

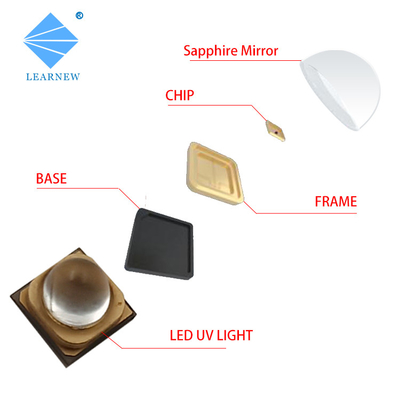

UVB SMD LED Chip Design Advantage:
1, Quartz glass package
2, High radiant flux
3, Narrow Wavelength
4, Inorganic & Nitrogen package
5, Low thermal resistance
3.8*3.8mm UVB SMD LED Chip Appilcation:
1, Photometer
2, Curing and Coating
3, Medical instruments
4, Photosensitive
