100W Array 1616 UVA 365nm 395nm 405nm UV LED Chips For Curing

Large Image : 100W Array 1616 UVA 365nm 395nm 405nm UV LED Chips For Curing

Product Details:

Place of Origin:	CHINA
Brand Name:	LEARNEW OPTO
Certification:	CE/RoHs
Model Number:	LN-CVS16UV-P42

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	Negotiable
Packaging Details:	Anti-static Blister packing
Delivery Time:	1-7 working days for samples, 1-4Weeks for quantity Order
Payment Terms:	L/C, D/A, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500,000PCS per month

Contact Now

100W Array 1616 UVA 365nm 395nm 405nm UV LED Chips For Curing

Description

POWER:	100W	IF:	2100mA (Max=3A)
VF:	48-54V	Circuit:	14S3P
WHOLE SIZE:	16*16MM	Lighting Area:	R15MM
High Light:	R15MM Lighting UV LED Chips , 1616 UV LED Chips , 2100mA UV LED Chip

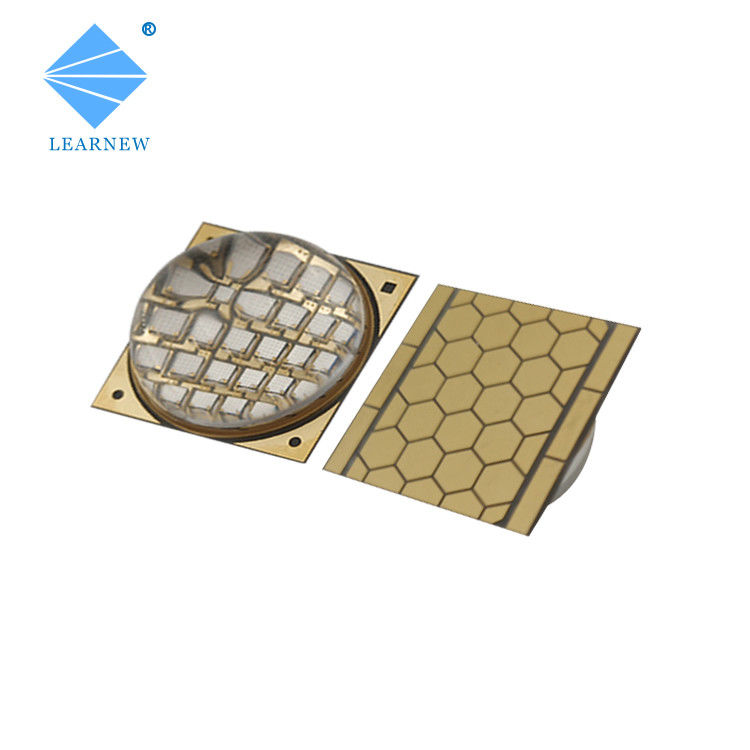

100W LED Array 1616 UVA 365nm 395nm 405nm UVA LED Chip for UV Curing

Product specification

UV-A	POWER	Dominant Wavelength	Optical Power	IF	VF	Circuit	WHOLE SIZE	Lighting Area	VIEW ANGLE	LENS
LN-CVS16UV-P42	100W	365nm	33500-38000mW	2100mA (Max=3A)	48-54V	14S3P	16*16MM	R15MM	60-90°	QUARTZ GLASS LENS
		385nm	40000-48000mW
		395nm	42000-50000mW

100W UV CHIP Design Advantage

Long life span
low thermal resistance
High effiency 40%-50%
Ingorganic encapsulation
High density and intensity
Screw free assemble for high power curing

Appilcation

UV curing
LED growing market
Offset printer
3D printer
Exposure machines
Inkjet printer

100W Array 1616 UVA 365nm 395nm 405nm UV LED Chips For Curing 0

100W Array 1616 UVA 365nm 395nm 405nm UV LED Chips For Curing 2

FAQ

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?

A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?

A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.

Q6: How to place an order?

A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?

A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?

A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
