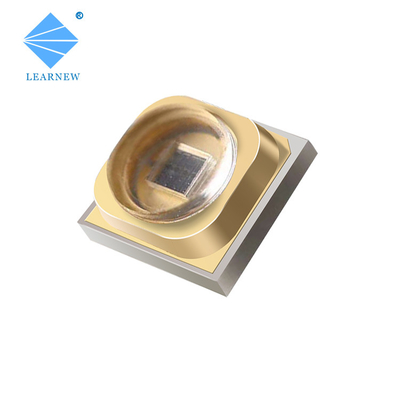

222nm 4040 1W 4.0x4.0mm SMD UVC LED Chip With High Efficiency Model

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
Learnew delivered what we asked for,quickly and well made. Happy to work with Learnnew, he can tell me accurately about the product and save me a lot of time, they are very professional

—— Ashraf Trading

I'm Online Chat Now

222nm 4040 1W 4.0x4.0mm SMD UVC LED Chip With High Efficiency Model

222nm 4040 1W 4.0x4.0mm SMD UVC LED Chip With High Efficiency Model
222nm 4040 1W 4.0x4.0mm SMD UVC LED Chip With High Efficiency Model
222nm 4040 1W 4.0x4.0mm SMD UVC LED Chip With High Efficiency Model 222nm 4040 1W 4.0x4.0mm SMD UVC LED Chip With High Efficiency Model 222nm 4040 1W 4.0x4.0mm SMD UVC LED Chip With High Efficiency Model 222nm 4040 1W 4.0x4.0mm SMD UVC LED Chip With High Efficiency Model 222nm 4040 1W 4.0x4.0mm SMD UVC LED Chip With High Efficiency Model

Large Image :  222nm 4040 1W 4.0x4.0mm SMD UVC LED Chip With High Efficiency Model

Product Details:
Place of Origin: China
Brand Name: Learnew
Certification: CE; ROHS
Model Number: LN-SMD4040UVC-P1
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiate
Packaging Details: Samples packing method can be in a Antistatic bag, Anti-static plate in deal with empty space, or Circle up with foam. Order packing method will be Anti-static plate in deal with empty space.
Delivery Time: 7-90
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3000000PCS/Month

222nm 4040 1W 4.0x4.0mm SMD UVC LED Chip With High Efficiency Model

Description
UV-C: LN-SMD4040UVC-P1 Power: 1W
Dominant Wavelength: 220-235nm Optical Power: 1-3mW
IF: 100mA VF: 10-13V
High Light:

222nm 4040 UVC LED Chip

,

4.0x4.0mm UVC LED Chip

,

QUARTZ GLASS LENS SMD LED Chips

222nm 4040 UVC 220-235nm 1W 4.0*4.0mm 1-3mW 100mA 10-13V SMD UVC LED Chip With High Efficiency Model.



Power

Dominant Wavelength

Optical Power

IF

VF

Whole Size

View Angle

LENS



1W





220-235nm

1-3mW

100mA

10-13V

4.0*4.0MM

120°

QUARTZ GLASS LENS

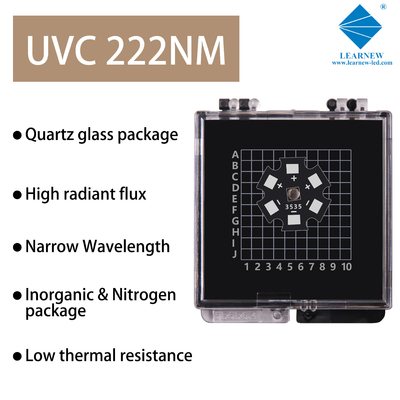

Design Advantage Of 220-235nm UVC LEDs:



1, Quartz glass package
2, High radiant flux
3, Narrow Wavelength
4. Inorganic & Nitrogen package
5, Low thermal resistance



4.0*4.0mm 1W UVC LEDs Application:



1. ICU Hospital
2. Man-Machine Symbiosis
3. Sterilization...
