Product Details:
|
| Type: | 2-10W UVC LED | Dominant Wavelength: | 250nm-280nm |
|---|---|---|---|
| Optical Power: | 30-120mW | IF: | 100-700mA |
| VF: | 5-72V | WHOLE SIZE: | 6.0*6.0MM 3.5*3.5MM |
| VIEW ANGLE: | 120° | Application: | ICU Hospital Air Purifier Water Purifier Washing Machines Sterilization... |
| High Light: | 3535 LED COB Chip 254nm,10W UVC LED COB Chip,Indoor Sterilization UVC LED Chip |
||
3535 UVC LED 254nm 222nm 265nm 275nm2W 3W 5W 10W COB chip outdoor indoor Sterilization
| UV-C | POWER | Dominant Wavelength | Optical Power | IF | VF | WHOLE SIZE | VIEW ANGLE | LENS |
| LN-SMD3535UVC-P2 | 2W | 270-280nm (Sterilization) |
30-40mW | 200mA | 5-7V | 3.5*3.5MM | 120° | QUARTZ GLASS LENS |
| UV-C | POWER | Dominant Wavelength | Optical Power | IF | VF | WHOLE SIZE | VIEW ANGLE | LENS |
| LN-SMD3535UVC-P3 | 3-5W | 270-280nm | 80-120mW | 500-700mA | 5-7V | 3.5*3.5MM | 120° | QUARTZ GLASS LENS |
| 260-270nm | 80-120mW | |||||||
| 250-260nm | 80-120mW | |||||||
 LN-SMD3535UVC-P3D |
3W | 270-280nm | 50-70mW | 350-500mA | 5-7V | 3.5*3.5MM | 120° | QUARTZ GLASS LENS |
| 260-270nm | 50-70mW | |||||||
| 250-260nm | 50-70mW | |||||||
| LN-CVS6UVC-P9D | 7-10W | 270-280nm | 80-100mW | 100mA | 54-72V | 6.0*6.0MM | 120° | QUARTZ GLASS LENS |
| 260-270nm | 80-100mW | |||||||
| 250-260nm | 60-90mW |

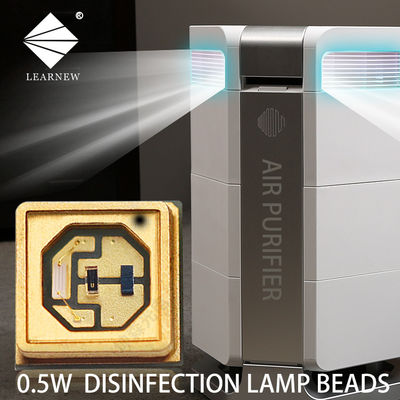

3535 UVC+UVA LED SMD Lighting angle 120°, can be used for alone, can be designed as UVAC+PCB board, the products are used in various commercial and ICU Hospital;Air purifier;Water purifier;WashingmachinesSterilization...
Learnew Opto 0.5-10W UVC LED SMD, we can undertake various customized uva module OEM and ODM services.
Learnew Opto UVAC products support custom mixing of dominant wavelengths or other dominant wavelengths.
Surface sterilization we recommend 270-275nm, Air Purify we recommend 260-270nm, and Water Purify we recommend 250-260nm.
About Learnew opto and brand story(Artificial supplemental horticultural lights)
Dedicated to efficient agriculture with LED technology
Engaged in LED products manufacture, R&D and market nearly decade years, Support OEM & ODM
Learnew own 8 automatic production lines, 2 industry level laboratories to support both LED components(SMD LED & LED COB) and LED grow light
Professional foreign trade sales team, the average member of more than 3 years of relevant work experience
Market cover North America, European, South America and Southeast Asian
Famous customers include TOSHIBA LIGHTIN, FLEXTRONICS...
Learnew project team with more than 3 years experience of big greenhouse bu
