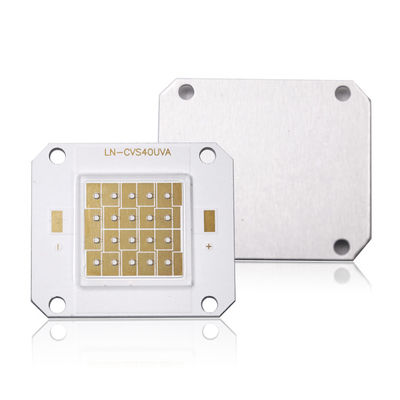

Offset Printer 20W 50W 100W UV LED Chips 365nm 385nm 395nm 40x46MM

Offset Printer 20W 50W 100W UV LED Chips 365nm 385nm 395nm 40x46MM
Offset Printer 20W 50W 100W UV LED Chips 365nm 385nm 395nm 40x46MM
Offset Printer 20W 50W 100W UV LED Chips 365nm 385nm 395nm 40x46MM Offset Printer 20W 50W 100W UV LED Chips 365nm 385nm 395nm 40x46MM Offset Printer 20W 50W 100W UV LED Chips 365nm 385nm 395nm 40x46MM Offset Printer 20W 50W 100W UV LED Chips 365nm 385nm 395nm 40x46MM Offset Printer 20W 50W 100W UV LED Chips 365nm 385nm 395nm 40x46MM

Large Image :  Offset Printer 20W 50W 100W UV LED Chips 365nm 385nm 395nm 40x46MM

Product Details:
Place of Origin: China
Brand Name: Learnew Opto.
Certification: CE, ROHS CERTIFICATE
Model Number: LN-CVS40UV-P10/LN-CVS40UV-P20/LN-CVB40UV-P40
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Anti-Static Blister Packing
Delivery Time: 5-8 workdays
Payment Terms: T/T, PAYPAL and so on,
Supply Ability: 50000pcs/month

Offset Printer 20W 50W 100W UV LED Chips 365nm 385nm 395nm 40x46MM

Description
POWER: 20W/50W/100W Dominant Wavelength: 365nm/385nm/395nm
Optical Power: 8100-50000mW IF: 700mA (Max=1A)/1400mA (Max=2A)/2800mA (Max=4A)
VF: 34-38V WHOLE SIZE: 40*46MM
VIEW ANGLE: 120° LENS: QUARTZ GLASS LENS
SUBSTRATE: ALN Coppering/Ceramic Circuit: 10S1P/10S2P/10S4P
High Light:

Offset Printer UV LED Chip

,

40x46MM UV LED Chip

,

ROHS CERTIFICATE UV LED Chips

20W 50W 100W 365nm 385nm 395nm 8100-50000mW 40*46MM Cost performance for Offset printer



The form of UV LED with Key Features

UVA TYPE POWER Dominant Wavelength Optical Power IF WHOLE SIZE VF Lighting Area VIEW ANGLE
LN-CVS40UV-P10

20W

365nm/385nm/395nm

8100-12400mW

700mA
(Max=1A)
40*46MM

34-38V

25*25MM 120°
LN-CVS40UV-P20 20W

365nm/385nm/395nm

16000-24000mW

1400mA
(Max=2A)
40*46MM

34-38V

25*25MM 120°
LN-CVB40UV-P40 100W 365nm/385nm/395nm 30000-50000mW 2800mA
(Max=4A)
40*46MM 34-38V 25*25MM 120°


Outline Dimension



Offset Printer 20W 50W 100W UV LED Chips 365nm 385nm 395nm 40x46MM 0

Offset Printer 20W 50W 100W UV LED Chips 365nm 385nm 395nm 40x46MM 1



Design Advantage

1,Long life span
2,low thermal resistance
3,High effiency 40%-50%
4,Ingorganic encapsulation
5,Cost performance
6,Easy replaced old high power module



Application

1,UV curing
2,LED growing market
3,Offset printer
4,3D printer
5,Exposure machines
6,Inkjet printer



FAQ

Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2: All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?

A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?

A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.

Q6: How to place an order?

A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?

A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?

A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
