290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
August 25, 2023, I purchased UVA LED chips from Learnew. Learnew delivered the custom UVA chips we requested quickly and with excellent workmanship. It was a pleasure to work with Learnew. He was able to tell me exactly which product would work with my curing printer, saving me a lot of time. They are very professional.

—— Ashraf Trading

October 13, 2023,I received a customized 3535 COB LED Chip .Their attention to detail, timely responses, and on-time delivery have exceeded my expectation.The sample I received is what I need, very bright, I will choose LEARNEW for a long time in the future

—— Hector Bustillo

March 2024,Just received the product and have tried it,The design of these Hight LED chips is outstanding. They are compact, easy to install, and provide excellent illumination. I am extremely satisfied with their performance!

—— Fabio Antista

I am thoroughly impressed with the functionality of these UV LED chips. They offer reliable UV output, high efficiency, and a long lifespan. A great investment for any UV application!

—— Ali Muhammad

I'm Online Chat Now

290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment

290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment
290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment 290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment 290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment

Large Image :  290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment

Product Details:
Place of Origin: China
Brand Name: Learnew Opto
Certification: CE
Model Number: UVB LED
Payment & Shipping Terms:
Minimum Order Quantity: 200piece
Price: $1.15-1.70/piece
Packaging Details: We use a layer of waterproof material attached to the packaging box to prevent damage to the product
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000000piece/month

290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment

Description
Type: UV LED Color Temperature: 290-315nm
Input Voltage(V): 5-7V Power: 0.5W 1W
WHOLE SIZE: 3.5*3.5MM Chip Material: INGAN
Emitting Color: Purple Optical Power: 14-18mW,10-14mW,4-7mW
Forward Current: 100mA (Max=150mA),100mA,50mA (Max=60mA) Design Advantage: 1,Quartz Glass Package 2,High Radiant Flux
High Light:

290nm UV LED Chips

,

300nm UV LED Chips

,

Animal Calcium Supplement UV LED Chip

290nm 293nm 295nm uv led 300nm 305nm 310nm 315nm uvb led 3535 for Medical treatment



Specification





Product Type
LN-SMD3535UVB-P1
LN-SMD3535UVB-P1D
LN-SMD3535UVB-P0.5
Power
1W
1W
0.5W
Wavelength
290-300nm 300-306nm 306-310nm 310-315nm
Input Voltage(V)
5-7V
Current
100mA (Max=150mA)
100mA
50mA (Max=60mA)
Optical Power
14-18mW
10-14mW
4-7mW
CHIPS
Flip Chip (PW or Dowa 2020)
Flip Chip (PW or Dowa 1520)
Flip Chip (PW or Dowa 1020)
JUNCTION TEMPERATURE
60-80C
Viewing Angle(°)
120°
VIEW ANGLE
3.5*3.5MM
LENS
QUARTZ GLASS
SUBSTRATE
ALN Coppering


Application
Medical treatment
Animal calcium supplement
Plant growth hormone supplement
Marijuana refinement & Animal calcium supplement

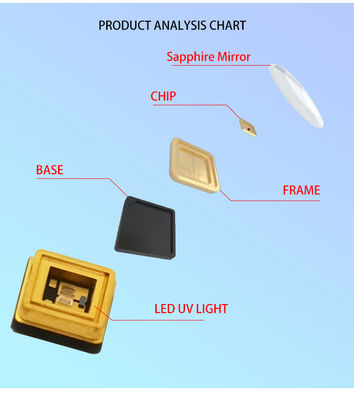

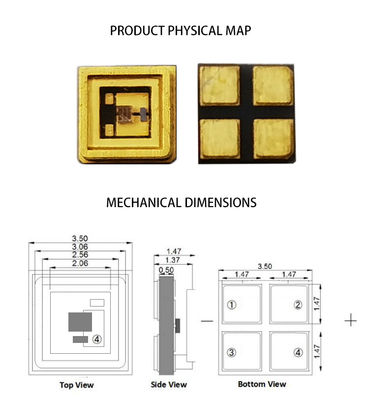

Products Description
290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment 0
290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment 1
290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment 2
290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment 3
Product Application



290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment 4


Design Advantage                                                                                                       1,Quartz glass package
2,High radiant flux
3,Narrow Wavelength
4,Inorganic & Nitrogen package
5,Low thermal resistance






FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.

Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.


Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
