Product Details:
|
| Chip: | VERTICAL (LG Or SEOUL SEMI) | Color: | UV |
|---|---|---|---|
| View Angle: | 30° | Power: | 200W |
| Whole Size: | 35*35MM | LENS: | QUARTZ GLASS LENS |
| IF: | 5000mA (Max=7A) | VF: | 38-48V |
| Circuit: | 12S7P | SUBSTRATE: | ALN Coppering |
| High Light: | ALN Coppering Substrate UV LED Chips,5000mA UV LED Chip,200W UV LED Chips 395nm |
||

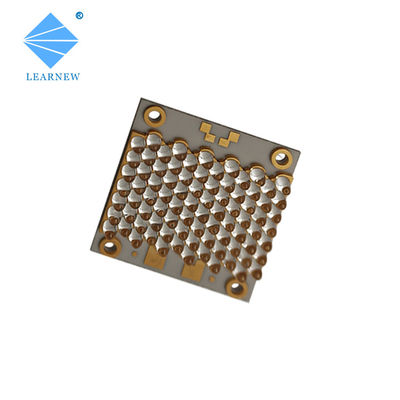

35*35MM 200W 5000mA UVA 365nm 385nm 395nm With 30DEG For Printer And Curing
Key Feature E-catalogue
| UV-A | POWER | Dominant Wavelength | Optical Power | IF | VF | Circuit | WHOLE SIZE | Lighting Area | VIEW ANGLE |
|
LN-CVS35UV-P84-A |
110W |
365nm 395nm
|
67000-77000mW 84000-98000mW 90000-105000mW |
5000mA (Max=7A) |
38-48V | 12S7P | 35*35MM | 22*35MM | 30° |
| LN-CVS35UVH-P84-A (Hybrid version) | 110W | 395nm 50% 385nm 50% |
87000-98000mW | 5000mA (Max=7A) |
38-48V | 12S7P | 35*35MM | 22*35MM | 30° |
Outlet Dimensions
Design Advantage:
1,Long life span
2,low thermal resistance
3,High effiency 40%-50%
4,Ingorganic encapsulation
5,High density and intensity
6,Screw free assemble for high power curing use
7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
8,Special view angle in 30DEG or 120DEG
Appilcation:
1,UV curing
2,LED growing market
3,Offset printer
4,3D printer
5,Exposure machines
6,Inkjet printer
7,High intensity curing Market like 3KW,7kW,15KW...
FAQ
Q1: Do you supply OEM,ODM service?
A1: Yes. Learnew opto with 6 engineers who of 10 years industry experience, special to offer ODM service in fast response.
Q2: Can I print my logo on the product or design related products I need?
A2: Yes, we have professional equipment and R&D personnel, and can design according to customer needs.
Q3: Can I order samples?
A3: Yes, we welcome to order samples to test and check the quality. Mixed samples are acceptable.
Q4: Is there a minimum order quantity limit?
A4: Minimum order quantity, 1 sample can be provided for inspection.
Q5: How to deal with product failure after sale?
A5: First of all, our products are produced in a strict quality control system, and the defective rate is very low, not exceeding 0.2%. Secondly, for defective bulk products, we will repair them and resend them to you, or we can discuss solutions based on actual conditions.
Q6: What about the delivery time?
A6: It takes 3-5 days for samples, and 1-2 weeks for mass production
Q7: How do you ship the goods and how long will it take to arrive?
A7: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea transportation are also optional.
