Product Details:
|
| Power: | 1W | Narrow Wavelength: | 306-310nm(290-300nm, 300-306nm, 310-315nm Are Also Available) |
|---|---|---|---|
| Input Current: | 100(Max=150mA) | Input Voltage: | 5-7V |
| Substrates: | ALN Coppering | LENS: | Quartz Glass Lens |
| View Angle: | 120DEG | Chips Brand: | Imported Level-A LG/PW Chips |
| High Light: | Medical Treatment UVB LED Chips,315NM UVB LED Chips,1watt UVB LED Chip |
||

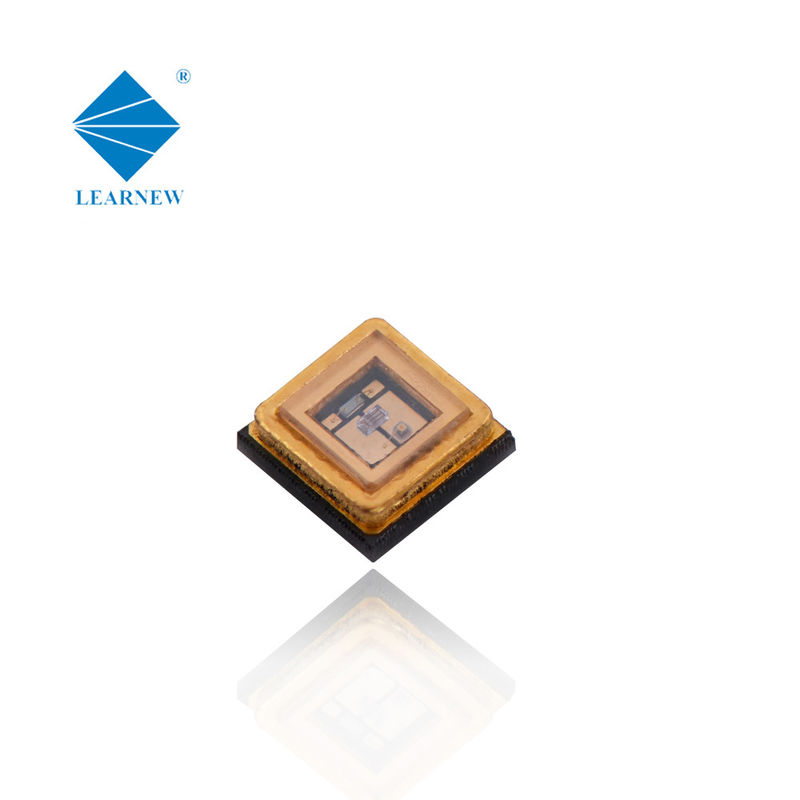

Medical treatment UVB 300NM 305NM 308NM 310NM 315NM 1watt LED Chips from Learnew LED manufacturer
Specification of SMD LED Chips
| models | Power | Peak Wavelength |
Input Current |
Radiant Power | Whole Size |
| LN-SMD3535UVB-P1(290-300NM) | 1W | 290-300NM | 100mA(Max=150mA) | 14-18mW | 3.5*3.5mm |
| LN-SMD3535UVB-P1(300-305NM) | 1W | 300-305NM | 100mA(Max=150mA) | 14-18mW | 3.5*3.5mm |
| LN-SMD3535UVB-P1(305-310NM) | 1W | 305-310NM | 100mA(Max=150mA) | 14-18mW | 3.5*3.5mm |
| LN-SMD3535UVB-P1(310-315NM) | 1W | 310-315NM | 100mA(Max=150mA) | 14-18mW | 3.5*3.5mm |
Thick 3535 ALN Coppering Substrates with New Generation Flip chip LG/Seoul semi/Dowa/PW Packing technology, Results in a good heat conductive(Thermal resistance 0.1-0.2C/W) & Long Life span(LM50 10000Hrs) & Efficiency in Sterilization purpose.
What's UVB and its application?
The wavelength of 290 ~ 320nm, also known as medium wave erythema effect ultraviolet. Medium penetrating power, its shorter wavelength part will be absorbed by transparent glass, most of the medium-wave ultraviolet rays contained in sunlight are absorbed by the ozone layer, and only less than 2% can reach the earth's surface, which is especially strong in summer and afternoon. UVB ultraviolet rays have an erythematous effect on the human body, which can promote the metabolism of minerals and the formation of vitamin D in the body, but long-term or excessive exposure will tan the skin and cause redness and peeling.
Appilcation:
