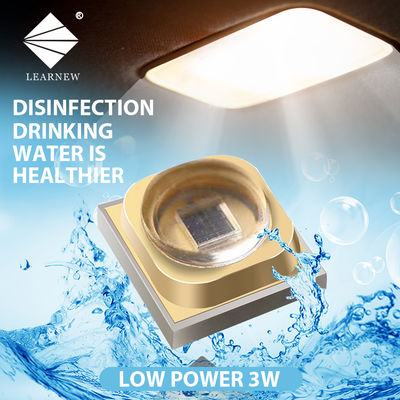

3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier

3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier 3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier 3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier

Large Image :  3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier

Product Details:
Place of Origin: China
Brand Name: Learnew Opto
Certification: CE
Model Number: UVC LED
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: $9.20-13.00/piece
Packaging Details: We use a layer of waterproof material attached to the packaging box to prevent damage to the product
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000000piece/month
Contact Now

3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier

Description
Type: UV LED Input Voltage(V): 5-7V
Power: 3W Warranty(Year): 2-Year
Application: Air Purifier Water Purifier Optional Power: 50-70mW
WHOLE SIZE: 3.5*3.5MM Storage Temperature(℃): -40 - 100
Chip Material: INGAN Lens: QUARTZ GLASS LENS
IF: 350-500mA Working Time (hours): 10000
Lighting Solutions Service: Lighting And Circuitry Design, LitePro DLX Layout, Auto CAD Layou
High Light:

3W UVC LED Chips

,

265nm UVC LED Chips

,

3535 UVC UV LED Chips



3W 3535 UVC 255NM 265NM 275NM LED CHIPS FOR AIR PURIFIER UV LED

Specification
Design Advantage
1,Quartz glass package 2,High radiant flux 3,Narrow Wavelength 4,Inorganic & Nitrogen package 5,Low thermal resistance
VIEW ANGLE
120°
Thermal Resistance
4.7-6.9℃/W
LENS
QUARTZ GLASS LENS
WHOLE SIZE
3.5*3.5MM
Warranty
LM70=5000Hrs LM50=10000Hrs
Radiant flux
50-70mW
Warranty
10,000Hrs
or 2 years
SUBSTRATE
ALN Coppering
CHIPS
Flip Chip (PW or LG)
Soldering Temperature
Reflow Soldering : 260ºC
Hand Soldering : 350ºC
Product Description
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier 0
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier 1
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier 2
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier 3
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier 4
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier 5
LN-SMD3535UVC-P3D
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier 6
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier 7

LN-SMD3535UVC-P3D
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier 6
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team. Q6: How to place an order? A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins. Q7: What payment terms are available? A7: T/T,PayPal, Western Union and Secure Payment. Q8: What about the lead time? A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Our Advantages

Q1: Do you supply OEM,ODM service? A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years. Q2: All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us. Q3: How can I get a quotation from you? A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here. Q4: Is there any discount for bulk order? A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time. Q5: Do you support drop shipping and how much is the shipping cost? A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team. Q6: How to place an order? A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins. Q7: What payment terms are available? A7: T/T,PayPal, Western Union and Secure Payment. Q8: What about the lead time? A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
