Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW

Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW
Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW
Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW

Large Image :  Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW OPTO
Certification: CE/RoHs/SGS
Model Number: LN-SMD3535UVC-P1
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: USD$0.85-USD$785/PCS
Packaging Details: Anti-static Blister packing
Delivery Time: 1-3 working days for samples, 1-4Weeks for quantity Order
Payment Terms: T/T, Paypal,Alipay, , T/T
Supply Ability: 500,000PCS per month

Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW

Description
Power: 1W Narrow Wavelength: 220-235NM, 250-260NM, 260-270NM, 270-280NM
Input Current: 100(Max=150mA) Input Voltage: 5-7V
Substrates: ALN Coppering LENS: Quartz Glass Lens
View Angle: 120DEG Chips Brand: Imported Level-A LG/PW Chips
High Light:

100mA 3535 UVC LED Chips

,

1W 3535 UVC LED Chips

,

120DEG 3535 UVC LED Chips

Air purifier source SMD 3535 UVC LED Chips with voltage 5-7V Germicial power 20-25mW current 100mA



North American customers recommended 1W 3535 UVC LED Chips

Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW 0

Specification of SMD LED Chips

models Power Peak Wavelength

    Input  Current

Radiant Power Whole Size
LN-SMD3535UVC-P1(250-260NM) 1.0W 250-260NM 100mA(Max=150mA) 15-20mW 3.5*3.5mm
LN-SMD3535UVC-P1(260-270NM) 1.0W 260-270NM 100mA(Max=150mA) 15-20mW 3.5*3.5mm
LN-SMD3535UVC-P1(270-280NM) 1.0W 270-280NM 100mA(Max=150mA) 15-20mW 3.5*3.5mm



Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW 1





Thick 3535 ALN Coppering Substrates with New Generation Flip chip LG/Seoul semi/Dowa/PW Packing technology, Results in a good heat conductive(Thermal resistance 0.1-0.2C/W) & Long Life span(LM50 10000Hrs) & Efficiency in Sterilization purpose.



Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW 2

Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW 3

Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW 4

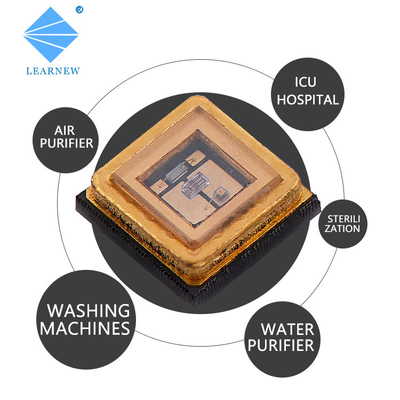

Appilcation:

  • CU Hospital
  • Air purifier
  • Water purifier
  • Washing machines Sterilization...





Feedbacks:

Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW 5

Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW 6



Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW 7

FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online,

we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 3-30working days. For samples, the delivery could be as fast as same day
Air Purifier Source SMD 3535 UVC LED Chips With Voltage 5-7V Germicial Power 20-25mW 8
