250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
Learnew delivered what we asked for,quickly and well made. Happy to work with Learnnew, he can tell me accurately about the product and save me a lot of time, they are very professional

—— Ashraf Trading

I'm Online Chat Now

250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance

250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance
250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance
250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance 250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance 250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance 250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance 250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance

Large Image :  250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW
Certification: VERIFICATION OF CONFORMITY
Model Number: LN-SMD3535UVC-P3D
Payment & Shipping Terms:
Minimum Order Quantity: 1000pieces
Price: USD $9.2-12.0 pieces
Packaging Details: 1000pcs in a carton
Delivery Time: 7 work day
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200000PCS a month

250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance

Description
Product Name: Low Thermal Resistance 250nm 280nm 3w UVC LED Chip From Purifier Powre: 3W
Dominant Wavelength: 250-280nm Optical Power: 50-70mW
IF: 350-500mA VF: 5-7V
VIEW ANGLE: 120° Life Span: LM70=5000Hrs/ LM50=10000Hrs
JUNCTION TEMPERATURE: 60C WHOLE SIZE: 3.5*3.5MM
High Light:

250nm 280nm UVC LED Chip

,

Low Thermal Resistance Chip Led Uvc

,

Led Uvc Chip 3.5x3.5mm

Low Thermal Resistance 250nm 280nm 3w UVC LED Chip from purifier



product name Low Thermal Resistance 250nm 280nm 3w UVC LED Chip from purifier
service Support sample service and customization service
power 3w
Dominant Wavelength 250nm-280nm
Optical Power 50-70mW
IF 350-500mA
VF 5-7V
VIEW ANGLE 120°

This the uv series.The pruduct model is LN-SMD3535UVC-P3D.

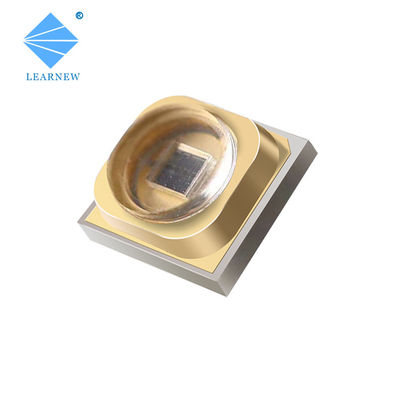

250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance 0

The product model isLN-SMD3535UVC-P3D.its power is 3watt and the Dominant Wavelength is 250nm to 280nm. Whta’s more, the Optical Power from 50 to 70mW and the forward current(IF) is 350 to 500mA. It Voltage Forward 5-7V. If you look at this, the light Angle of this product is 120 degrees.

250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance 1

Those are the approximate information about the uvc product. You may got it, they have attained the same design advantages for five points:

  • 1,Quartz glass package
  • 2,High radiant flux
  • 3,Narrow Wavelength
  • 4,Inorganic & Nitrogen package
  • 5,Low thermal resistance

250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance 2

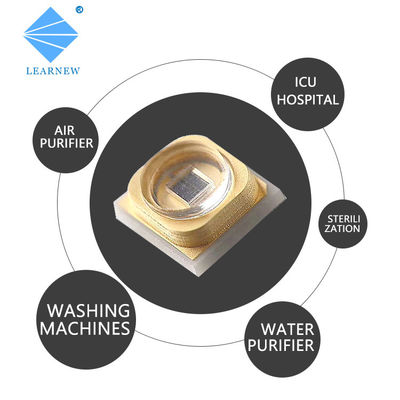

This is the application market for our products

  • ICU Hospital
  • Air purifier
  • Water purifier
  • Washing machines
  •
  • Sterilization...

250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance 3

250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance 4

250nm 280nm 3w UVC LED Chip From Purifier Low Thermal Resistance 5

FAQ
  • Q1: Do you supply OEM,ODM service? A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years. Q2: All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us.
  • Q3: How can I get a quotation from you? A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
  • Q4: Is there any discount for bulk order? A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
  • Q5: Do you support drop shipping and how much is the shipping cost? A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
  • Q6: How to place an order? A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
  • Q7: What payment terms are available? A7: T/T,PayPal, Western Union and Secure Payment.
  • Q8: What about the lead time? A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
