Quartz Glass Lens 3W 3838 High Intensity Smd UVA Led Chip High Power

Quartz Glass Lens 3W 3838 High Intensity Smd UVA Led Chip High Power
Quartz Glass Lens 3W 3838 High Intensity Smd UVA Led Chip High Power
Quartz Glass Lens 3W 3838 High Intensity Smd UVA Led Chip High Power Quartz Glass Lens 3W 3838 High Intensity Smd UVA Led Chip High Power Quartz Glass Lens 3W 3838 High Intensity Smd UVA Led Chip High Power Quartz Glass Lens 3W 3838 High Intensity Smd UVA Led Chip High Power

Large Image :  Quartz Glass Lens 3W 3838 High Intensity Smd UVA Led Chip High Power

Product Details:
Place of Origin: China
Brand Name: Learnew Opto.
Certification: CE, ROHS CERTIFICATE
Model Number: LN-SMD3838UV-P1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Anti-Static Blister Packing
Delivery Time: 5-8 workdays
Payment Terms: T/T, PAYPAL and so on
Supply Ability: 50000pcs/month

Quartz Glass Lens 3W 3838 High Intensity Smd UVA Led Chip High Power

Description
POWER: 3W Dominant Wavelength: 365nm
Optical Power: 810-1020mW IF: 700mA
VF: 3.4-3.8V Circuit: 1S1P

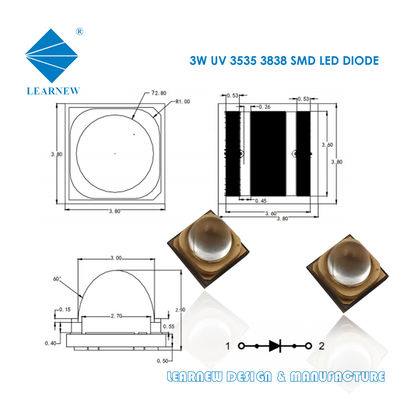

WHOLE SIZE: 3.8*3.8MM Lighting Area: R3.0MM
VIEW ANGLE: 60° LENS: QUARTZ GLASS LENS
High Light:

High Intensity Smd UVA Led Chip

,

3W 3838 UVA Led Chip

,

Quartz Glass Lens Led Chip

New product Quartz Glass Lens High power 3W 3838 High intensity Smd UVA Led Chip

  • Design Advantage

     1, Long life span
     2, low thermal resistance
     3, High effiency
     4, Ingorganic encapsulation

  • Appilcation

     1, LED plant Growing Market

      2, UV curing,Inkjet curing

      3, Photosensitive

Quartz Glass Lens 3W 3838 High Intensity Smd UVA Led Chip High Power 0







Quartz Glass Lens 3W 3838 High Intensity Smd UVA Led Chip High Power 1
