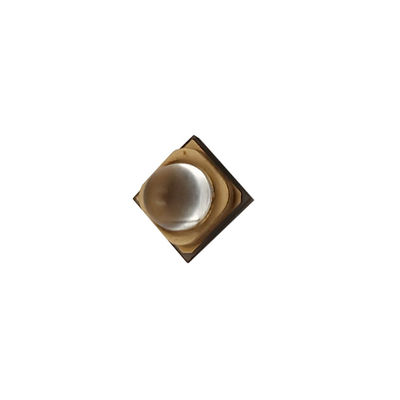

3838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
I'm Online Chat Now

3838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA

3838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA
3838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA
3838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA 3838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA 3838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA 3838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA 3838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA

Large Image :  3838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA

Product Details:
Place of Origin: China
Brand Name: Learnew
Model Number: LN-SMD3838UV-P1
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: USD 0.9~1.6 /Piece
Packaging Details: We use a layer of waterproof material attached to the packaging box to prevent damage to the product
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5000000Pieces/month

3838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA

Description
VF: 3.4-3.8V Lens Type: QUARTZ GLASS LENS
SUBSTRATE: ALN Coppering CHIPS: VERTICAL (EPILED & Sanan)
VIEW ANGLE: 60° Warranty: 3 Years
Lighting Area: R3.0MM Circuit: 1S1P
Dominant Wavelength: 365nm 385nm 395nm Optical Power: 810-1250mW
High Light:

395nm Uv Led Diode

,

3838 Type Uv Led Diode

,

3w 700mA Uva Led Chip

UVA Led Chip 3838 Type Smd Uv Led 365nm 385nm 395nm Uv Led Diode 3w 700mA





Product Name 365-395nm UVA LED 3838 Product Model LN-SMD3838UV-P1
Power Dissipation 3W Light Color UV Lights
Forward Voltage 3.4-3.8V Viewing Angle 60°
Forward Current 700mA Operating Temperature -40~+80 ℃
SUBSTRATE ALN Coppering Storage Temperature -40~+100 ℃
Wavelength 365-395nm Soldering Temperature 260℃

3838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA 03838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA 13838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA 23838 Type Uva Led Chip Smd 365nm 385nm 395nm Uv Led Diode 3w 700mA 3



WHAT IS UV?

Ultraviolet (UV) radiation is electromagnetic radiation of a wavelength shorter than that of the visible
region and longer than that of X-rays.

As air is opaque to UV radiation of less than 200nm wavelength, it is often subdivided into:
Near UV (380-200nm wavelength)
Extreme or Vacuum UV (200-10nm)

More commonly, when used in connection with human health and the environment, it is subdivided into:
UV-A: 315-400nm
UV-B: 280-315nm
UV-C: 250-280nm
In respect of UV curing there is also UVV (UV visible, 400-450nm). As the name suggests, UVV extends into the visible light spectrum.





WHY CHOOSE US
Learnew LED's Advantage

Never worry about our PRODUCT QUALITY;
Good Raw Material used and strict production process controlled
Famous Branded Chips 99.9%Purity Gold Wires
Original genuine Bridgelux,Epistar,Osram,Epileds,San'an chips...
High lumen,strong anti-static ability,good consistency.. High conductivity,good toughness, good stability..
Red Copper Lead Frame NarrowBinning&Voltage Sorting
High conductivity>400w/mk and thick silver coating: 80-120u One or two binning available,SDCM<3or 5 step ,0.1Vvoltage sorting available
We can offer ANY LED PRODUCT you want to;Customized LED Product available.
