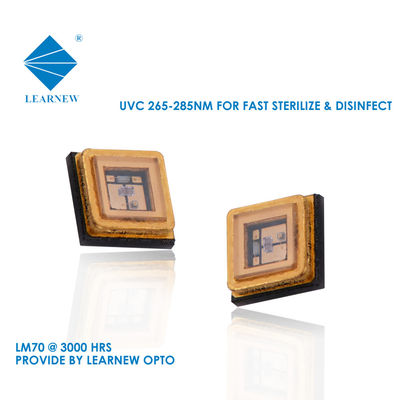

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
Learnew delivered what we asked for,quickly and well made. Happy to work with Learnnew, he can tell me accurately about the product and save me a lot of time, they are very professional

—— Ashraf Trading

I'm Online Chat Now

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power
Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Large Image :  Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW OPTO
Certification: CE/RoHs/SGS
Model Number: LN-SMD3535UVC-P1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: 1.7-2.7
Packaging Details: Anti-static Blister packing
Delivery Time: 6-13 working days
Payment Terms: T/T, Paypal,Alipay, Western Union
Supply Ability: 500,000PCS per month

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Description
Electronic Power: 1Watt Dominant Wavelength: 250-260NM, 260-270NM, 270-280NM
Color: Deep UVC Input Current: 100-150mA
Input Voltage: 6.0-8.0V Substrates: ALN Coppering
LENS: Quartz Glass Lens View Angle: 120DEG
High Light:

SMD 3535 UVC LED Chips

,

1W UVC LED Chip

,

SMD 3535 Chip LED UVC

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power



North American customers recommended 1W 3535 UVC LED Chips

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power 0

Specification of SMD LED Chips

models Power Peak Wavelength Radiant Power Whole Size
LN-SMD3535UVC-P1(250-260NM) 1.0W 250-260NM 12-15mW 3.5*3.5mm
LN-SMD3535UVC-P1(260-270NM) 1.0W 260-270NM 14-18mW 3.5*3.5mm
LN-SMD3535UVC-P1(270-280NM) 1.0W 270-280NM 14-18mW 3.5*3.5mm





Thick 3535 ALN Coppering Substrates with New Generation Flip chip LG/Seoul semi/Dowa/PW Packing technology, Results in a good heat conductive(Thermal resistance 0.1-0.2C/W) & Long Life span(LM50 10000Hrs) & Efficiency in Sterilization purpose.



Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power 1

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power 2

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power 3

Appilcation:

  • CU Hospital
  • Air purifier
  • Water purifier
  • Washing machines Sterilization...

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power 4

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power 5

Feedbacks:

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power 6

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power 7



Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power 8

FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online,

we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 3-30working days. For samples, the delivery could be as fast as same day.
