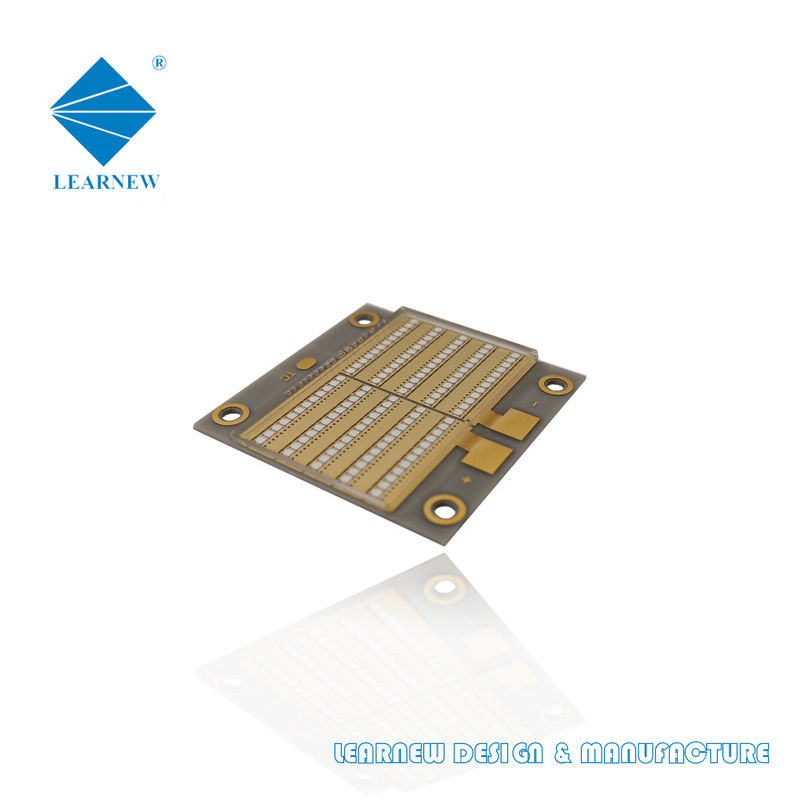

High intensity 300W 395nm UV LED Chip Low Thermal Resistance

High intensity 300W 395nm UV LED Chip Low Thermal Resistance
High intensity 300W 395nm UV LED Chip Low Thermal Resistance High intensity 300W 395nm UV LED Chip Low Thermal Resistance High intensity 300W 395nm UV LED Chip Low Thermal Resistance High intensity 300W 395nm UV LED Chip Low Thermal Resistance

Large Image :  High intensity 300W 395nm UV LED Chip Low Thermal Resistance

Product Details:
Place of Origin: China
Brand Name: LEARNEW OPTO
Certification: CE/RoHs
Model Number: LN-CVS35UV-P120
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Price: USD Current $90TO $99 Per Pieces
Packaging Details: Under 10pieces, anti-static bag and Foam will be used for pacakge, shipping parcel box size 22mm*13mm*15mm
Delivery Time: 7-12 working days
Payment Terms: T/T, Paypal, Alipay, Wechat
Supply Ability: 10000 per month
Contact Now

High intensity 300W 395nm UV LED Chip Low Thermal Resistance

Description
Substrates: ALN Coppering View Angle: 30°
Whole Size: 35*35MM LENS: QUARTZ GLASS LENS
VF: 34-38V IF: 5000mA(Max=7000mA)
Density: 5000+mW/CM2 At 80MM Distance Chips: LG Or SEOUL
High Light:

395nm UV LED Chip

,

300W UV LED Chip

,

395nm 300w LED Chip

High Intensity 300W 395nm UV LED Chip Low Thermal Resistance

Learnew new uva-led 34-38V 300W 3535 365nm 385nm 395nm led uv chips for uv led curing system

models LN-CVS35UV-P120-A
Dominant Wavelength 395nm
Optical Power 125000-150000mW
Circuit 10S12P
Lighting Area 22*35MM
CHIPS VERTICAL(LG or SEOUL SEMI)
LENS QUARTZ GLASS LENS
SUBSTRATE ALN Coppering





















Design Advantage:

  • low thermal resistance
  • High effiency 40%-50%
  • High density and intensity
  • Screw free assemble for high power curing use
  • Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
  • Special view angle in 30DEG or 120DEG



Appilcation:

  • Offset printer
  • 3D printer
  • Exposure machines
  • Inkjet printer
  • High intensity curing Market like 3KW,7kW,15KW...

High intensity 300W 395nm UV LED Chip Low Thermal Resistance 0

Product picture

High intensity 300W 395nm UV LED Chip Low Thermal Resistance 1High intensity 300W 395nm UV LED Chip Low Thermal Resistance 2High intensity 300W 395nm UV LED Chip Low Thermal Resistance 3High intensity 300W 395nm UV LED Chip Low Thermal Resistance 4

​





Q:Are you manufacturer or trade company?

A:We are an experienced and professional LED manufacturer.also,We have very experienced R&D engineers and we have strong ability to do ODM projects.Quality is guaranteed by professional team of R&D and QC.



Q: What technical support can I get after purchase?

A:Data sheet and operation manual will be provided to dear you. Our sales engineer will be answering your questions any time.



Q: If there is LED failure, how can you support?

A:Customers provide pictures of the failed products or the samples rejected, the engineer will analyze the failure and find out the reasons. If the failure was caused by the product quality, we will compensate with qualified replacement!
