LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
August 25, 2023, I purchased UVA LED chips from Learnew. Learnew delivered the custom UVA chips we requested quickly and with excellent workmanship. It was a pleasure to work with Learnew. He was able to tell me exactly which product would work with my curing printer, saving me a lot of time. They are very professional.

—— Ashraf Trading

October 13, 2023,I received a customized 3535 COB LED Chip .Their attention to detail, timely responses, and on-time delivery have exceeded my expectation.The sample I received is what I need, very bright, I will choose LEARNEW for a long time in the future

—— Hector Bustillo

March 2024,Just received the product and have tried it,The design of these Hight LED chips is outstanding. They are compact, easy to install, and provide excellent illumination. I am extremely satisfied with their performance!

—— Fabio Antista

I am thoroughly impressed with the functionality of these UV LED chips. They offer reliable UV output, high efficiency, and a long lifespan. A great investment for any UV application!

—— Ali Muhammad

I'm Online Chat Now

LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection

LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection
LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection
LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection

Large Image :  LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW
Certification: CE RoHS SGS
Model Number: LN-SMD3535UVC-P1
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable price
Packaging Details: Anti-static Blister packing
Delivery Time: 7-12 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 800,000PCS per month

LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection

Description
Color: Deep UV Optical Power: 8-12mW
Circuit: 1S1P View Angle: 120DEG
Package Model: Flip Chip Input Voltage: 6.0-8.0V
Highlight:

LEARNEW 1W UVC LED Chip

,

255nm SMD LED 3535 6V

,

1W SMD LED 3535 6V

High quality 1w germicidal uv led 255nm UVC Led chip for Air disinfection equipmentLEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection 0

  • ICU Hospital
  • Air purifier
  • Water purifier
  • Washing machines
  • Sterilization.............

LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection 1

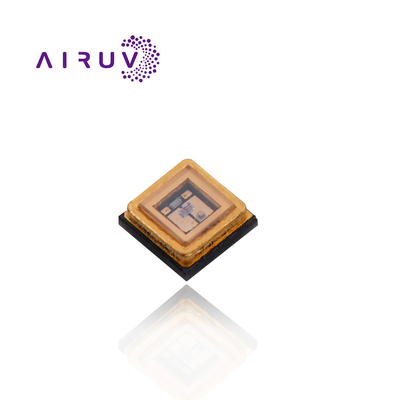

models LN-SMD3535UVC-P1
Electronic power 1W
Dominant Wavelength 255nm
Radiant power 8-12mW
Working current 100mA(max=150mA)
Working voltage 6.0-8.0V
Circuit 1S1P
Packing technology

New Generation Flip chip

EpiLED/Sanan/SZ

LED Diode size 3.5*3.5mm
View angle 120DEG
Thermal resistance 0.1-0.2C/W





























LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection 2

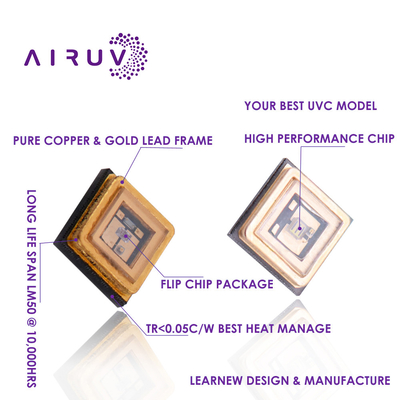

  • Long life span,LM70>=3000 hrs and LM50>=6,000 hrs.
  • Certifications
  • High radiant flux
  • Low thermal resistance
  • Ingorganic encapsulation and Quartz Glass package

LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection 3



LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection 4

LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection 5

LEARNEW 1W UVC LED Chip 255nm SMD LED 3535 6V For Air Disinfection 6

Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized.



Q2: All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.



Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).



Q4: Is there any discount for bulk order?

A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.



Q5: Do you support drop shipping and how much is the shippping cost?

A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.



Q6: How to place an order?

A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).
