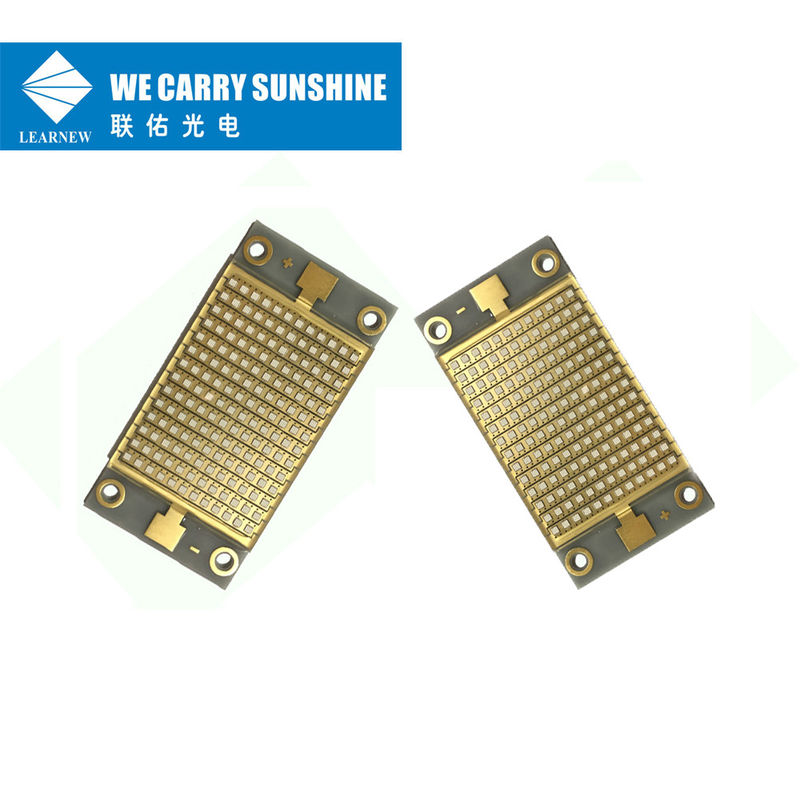

CE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
I'm Online Chat Now

CE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips

CE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips
CE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips
CE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips CE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips

Large Image :  CE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW
Certification: CE RoHS SGS
Model Number: LN-CVB50UV-P168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable price
Packaging Details: Anti-static Blister packing
Delivery Time: 7-12 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2,400,000PCS per month

CE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips

Description
Power: 288-400W IF: 8400mA (Max=12A)
VF: 44-48V Circuit: 14S12P
WHOLE SIZE: 50*25MM VIEW ANGLE: 120°
High Light:

120DEG 400W COB LED

,

8400mA UV LED Chips

,

CE RoHS 400W COB LED

5025 44-48V 288-400W uva led 365nm for uv led printing machineCE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips 0

Design Advantage:

  • Long life span
  • low thermal resistance
  • High effiency 40%-50%
  • Ingorganic encapsulation
  • Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
models LN-CVB50UV-P168
Dominant Wavelength

365nm/395nm/385nm

Optical Power

365nm:135000-165000mW

Circuit 14S12P
Lighting Area 25*35MM
CHIPS VERTICAL(LG or SEOUL SEMI)
LENS QUARTZ GLASS LENS
SUBSTRATE ALN Coppering





















CE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips 1

Appilcation:

  • Offset printer
  • 3D printer
  • Exposure machines
  • Inkjet printer
  • High intensity curing Market like 3KW,7kW,15KW...

CE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips 2

CE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips 3

CE RoHS 5025 120DEG 400W COB LED 8400mA UV LED Chips 4

Q:Are you manufacturer or trade company?

A:We are an experienced and professional LED manufacturer.also,We have very experienced R&D engineers and we have strong ability to do ODM projects.Quality is guaranteed by professional team of R&D and QC.





Q: What about the lead time?

A:It depends on the order quantity. In general, lead time is about 5-7 working days. For samples, the delivery could be as fast as same day.



Q: What technical support can I get after purchase?

A:Data sheet and operation manual will be provided to dear you. Our sales engineer will be answering your questions any time.



Q: If there is LED failure, how can you support?

A:Customers provide pictures of the failed products or the samples rejected, the engineer will analyze the failure and find out the reasons. If the failure was caused by the product quality, we will compensate with qualified replacement!
