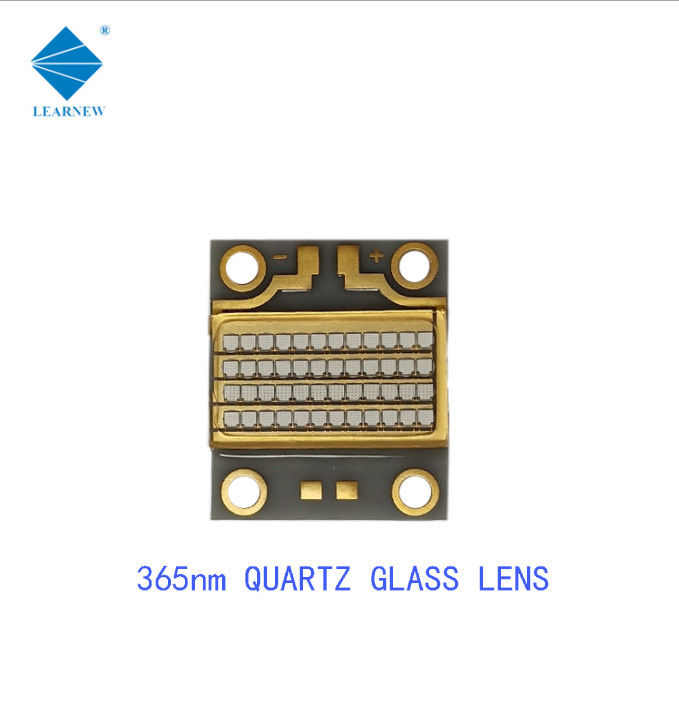

High Effiency Printer 126W 365m Uv Led Chip For Curing System

High Effiency Printer 126W 365m Uv Led Chip For Curing System
High Effiency Printer 126W 365m Uv Led Chip For Curing System
High Effiency Printer 126W 365m Uv Led Chip For Curing System High Effiency Printer 126W 365m Uv Led Chip For Curing System High Effiency Printer 126W 365m Uv Led Chip For Curing System High Effiency Printer 126W 365m Uv Led Chip For Curing System High Effiency Printer 126W 365m Uv Led Chip For Curing System

Large Image :  High Effiency Printer 126W 365m Uv Led Chip For Curing System

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW
Certification: CE RoHS SGS
Model Number: LN-CVS17UV- P48
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable price
Packaging Details: Anti-static Blister packing
Delivery Time: 7-12 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2,400,000PCS per month

High Effiency Printer 126W 365m Uv Led Chip For Curing System

Description
POWER: 126W SUBSTRATE: ALN Coppering
IF: 8400mA (Max=12A) VF: 13-16V
WHOLE SIZE: 20*17MM Wavelength: 365nm
High Light:

Uv Led Chips 8400mA

,

126W Uv Led Chips

,

SGS Uv Led Chip

UV LED 126W 365nm UVA LED Chips for UV curing system

Product Specifications

models LN-CVS17UV- P48
Dominant Wavelength 365nm/385nm/395nm
Optical Power

365nm:38000-42000mW

385nm:48000-54000mW

395nm:50000-56000mW

Lighting Area 10*17MM
Circuit 4S12P
VIEW ANGLE 120°
CHIPS VERTICAL(LG or SEOUL SEMI)
LENS QUARTZ GLASS LENS
SUBSTRATE ALN Coppering
Warranty 2 years

































Design Advantage:

  • Long life span
  • low thermal resistance
  • High effiency 40%-50%
  • Ingorganic encapsulation
  • High density and intensity
  • Screw free assemble for high power curing use

High Effiency Printer 126W 365m Uv Led Chip For Curing System 0

High Effiency Printer 126W 365m Uv Led Chip For Curing System 1

FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
