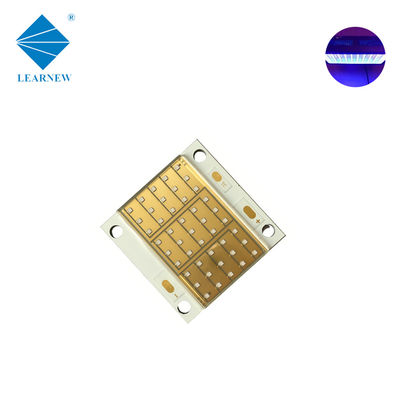

Super Aluminum 385nm 365nm 395nm 110W UVA LED UV Encapsulation Series

Super Aluminum 385nm 365nm 395nm 110W UVA LED UV Encapsulation Series
Super Aluminum 385nm 365nm 395nm 110W UVA LED UV Encapsulation Series

Large Image :  Super Aluminum 385nm 365nm 395nm 110W UVA LED UV Encapsulation Series

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW
Certification: CE RoHS SGS
Model Number: LN-CVS35UV-P45
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable price
Packaging Details: Anti-static Blister packing
Delivery Time: 7-12 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2,400,000PCS per month

Super Aluminum 385nm 365nm 395nm 110W UVA LED UV Encapsulation Series

Description
Wavelength: 385nm 365nm 395nm Size: 35*35MM
VF: 51-56V IF: 2100mA (Max=3A)
Warranty: 10,000Hrs Or 2 Years Lighting Area: 20*35MM
Highlight:

Encapsulation Series UVA LED

,

395nm UVA LED 110W

,

Super Aluminum UV LED Chip

Super Aluminum LED Encapsulation Series UVA LED 385nm 365nm 395nm 110W UV Led

Super Aluminum 385nm 365nm 395nm 110W UVA LED UV Encapsulation Series 0

models LN-CVS35UV-P45
Electronic power 110W
Circuit

15S3P

Dominant Wavelength

365nm

385nm

395nm

Optical Power

365nm:35000-41000mW

385nm:44000-52000mW

395nm:45000-54000mW

IF 2100mA(Max=3A)
Lighting Area 20*35MM
VIEW ANGLE 120°
SUBSTRATE Super Aluminum
CHIPS VERTICAL(LG or SEOUL SEMI)





















Super Aluminum 385nm 365nm 395nm 110W UVA LED UV Encapsulation Series 1

Design Advantage:

  • Long life span
  • low thermal resistance
  • High effiency 40%-50%
  • Ingorganic encapsulation
  • High density and intensity
  • Screw free assemble for high power curing use

Super Aluminum 385nm 365nm 395nm 110W UVA LED UV Encapsulation Series 2

Super Aluminum 385nm 365nm 395nm 110W UVA LED UV Encapsulation Series 3

Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized.



Q2: All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.



Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
