3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing

3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing
3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing
3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing 3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing 3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing 3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing 3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing

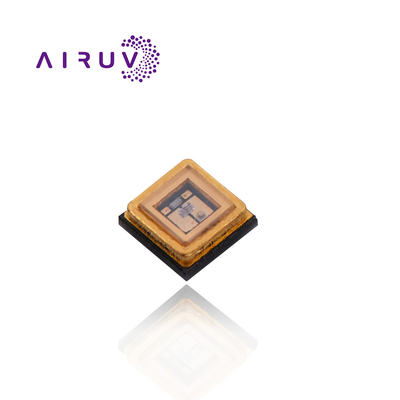

Large Image :  3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing

Product Details:
Place of Origin: CHINA
Brand Name: LEARNEW
Certification: CE RoHS SGS
Model Number: LN-SMD3535UVC-P0.5D
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.5-1.0/PCS
Packaging Details: Anti-static Blister packing
Delivery Time: 7-12 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 800,000PCS per month
Contact Now

3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing

Description
Color: Deep UV Peak Wavelength: 265-285nm
Input Current: 40-50mA Size: 3.5*3.5mm
LENS: Quartz Glass Optical Power: 3-5mW
Highlight:

3.5*3.5mm Mini SMD LED

,

5mw 0.5w SMD UVC LED

,

3.5*3.5mm SMD UVC LED

3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing 0

models LN-SMD3535UVC-P0.5D(265-285nm)
Electronic power 0.5W
Peak wavelength

265-285nm
Radiant power 3-5mW
Working current 40-50mA
Working voltage 6.0-8.0V
Circuit 1S1P
Packing technology New Generation Flip chip Sanan/EpiLED/SZ
LED Diode size 3.5*3.5mm
LENS Quartz Glass
View angle 120DEG
Substrate design ALN coppering
Thermal resistance 0.1-0.2C/W
Life span(LM50) 6,000 hrs































3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing 1

3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing 2

3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing 3

  • Long life span,LM70>=3000 hrs and LM50>=6,000 hrs.
  • Certifications
  • High radiant flux
  • Low thermal resistance
  • Ingorganic encapsulation and Quartz Glass package

3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing 4

3.5*3.5mm Mini SMD LED 3-5mw 0.5w SMD UVC LED For Surface Sterilizing 5

Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized.



Q2: All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.



Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).



Q4: Is there any discount for bulk order?

A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.



Q5: Do you support drop shipping and how much is the shippping cost?

A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.



Q6: How to place an order?

A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).
