Product Details:
|
| Color: | Ultraviolet | Peak Wavelength: | 365nm/385nm/395nm/405nm |
|---|---|---|---|
| Input Current: | 350-700mA | Size: | 3.5*3.5mm Or 3.8*3.8mm |
| LENS: | Quartz Glass And Silica | Optical Power: | 800-1500mW |
| Circuit: | 1S1P | View Angle: | 60/120DEG |
| Package Model: | Vertical Chip | Electrical Power: | 1-3W |
| Input Voltage: | 3.0-3.8V | ||
| High Light: | 405nm High Power SMD UV LED,3W 3838 3535 LED Chip,3838 High Power SMD UV LED |
||
Hot sale LG Seoul Chip high efficiency glass quartz UVA 365nm 385nm 395nm 405nm 1w 3w 3535 3838 high power smd UV Led
Product Specifications
| models | LN-SMD3838UV-P1 | LN-SMD3838UV-P1E | LN-SMD3535UV-P1 |
|---|---|---|---|
| Electronic power | 1-3W | 1-3W | 1-3W |
| Peak wavelength |
UV=365nm UV=385nm UV=395nm UV=405nm |
UV=365nm UV=385nm UV=395nm UV=405nm |
UV=385nm UV=395nm UV=405nm |
| Radiant power | 800-1300mW | 800-1300mW | 1000-1500mW |
| Working current | 350-700mA | 350-700mA | 350-700mA |
| Working voltage | 3.0-3.8V | 3.0-3.8V | 3.0-3.8V |
| Circuit | 1S1P | 1S1P | 1S1P |
| Packing technology | New Generation Vertical chip LG/Seoul semi/Epistar | New Generation Vertical chip EpiLED/Sanan | New Generation Vertical chip EpiLED/Sanan |
| LED Diode size | 3.8*3.8mm | 3.8*3.8mm | 3.5*3.5mm |
| LENS | Quartz Glass | Quartz Glass | Silica |
| View angle | 60DEG | 60DEG | 120DEG |
| Substrate design | ALN coppering | ALN coppering | ALN coppering |
| Thermal resistance | 0.1-0.2C/W | 0.1-0.2C/W | 0.1-0.2C/W |
| Life span(LM70) | 30,000 hrs | 30,000 hrs | 20,000 hrs |

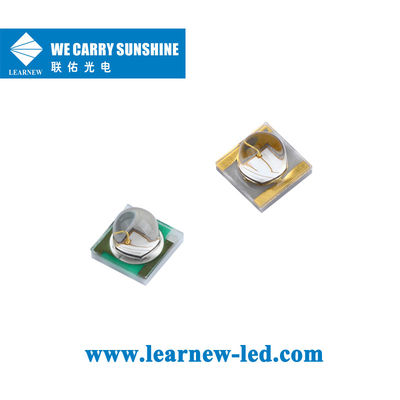

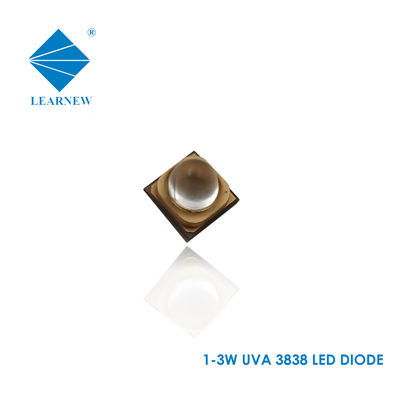

Product Image
