High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity

High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity
High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity

Large Image :  High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity

Product Details:
Place of Origin: Guangdong, China
Brand Name: learnew
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Contact Now

High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity

Description
Chip Material: Algainp Luminous Efficacy: 25 Lm/w
Color Temperature: R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K Input Voltage: R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V W=3.0-3.4V
Lifespan: 10000 Hours Luminous Flux: R=30-40lm G=60-70lm B=20-30lm W=70-90lm
Operating Temperature: -20 - 80 ℃ Power: 4W
Power Dissipation: 0.4 Product Weight: 0.15 Kg
Storage Temperature: -40 - 110 ℃ Viewing Angle: 120°
Current: 350mA-750mA Size: 3.5*3.5mm
Thermal Resistance: 0.17-0.28C/W
Highlight:

High Power LED 3535 RGB

,

3W SMD LED high lumen

,

5050 RGBW LED chip

High Power LED 1W/3W SMD 3535 5050 RGB/RGBW LED with High Lumen Intensity
High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 0

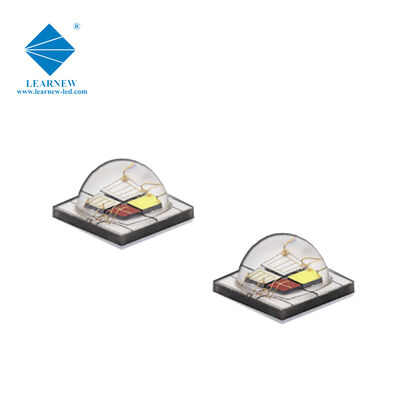

This ceramic substrate packaged LED features a compact structure designed for surface mount technology. It delivers high luminous flux, excellent luminous efficiency, strong current impact resistance, superior thermal conductivity, and extended service life. Chip current and voltage specifications can be customized according to your project requirements.
High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 1
Technical Specifications
Style SMD LED
Circuit 1PCS in series, 1PCS in parallel, 4 circuit
Whole Size 3.5 × 3.5 mm
Voltage R=2.0-2.4V, G=3.0-3.4V, B=3.0-3.4V, W=3.0-3.4V
Lens R1.5 mm
Substrate Ceramic
Design Advantages
  • Ceramic leadframe construction
  • High ESD protection rating
  • Standard A Class chips
  • Excellent cost performance
  • Gold wire bonding
  • Easy reflow soldering process
Detailed Product Images
High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 2 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 3 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 4 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 5 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 6
Related UV LED Products
LEARNEW UV LED Chip Series
UVC LED 250-285nm (395-405nm): Ideal for hospitals, air conditioning systems, disinfection cabinets, water treatment equipment, water dispensers, sewage treatment plants, swimming pools, food and beverage processing equipment, maternal and child supplies sterilization, and portable sterilizers.
UVB LED 305-315nm: Used in medical industry for vitamin D3 production and treatment of metabolic bone diseases including osteoporosis.
UVA LED 365-395nm: Applications include UV adhesive curing for LED growing markets, 3D printing, displays, electronic medical devices, instrumentation, UV coating curing for building materials, furniture, home appliances, automotive industries, UV ink curing for printing and packaging, mosquito lamps, and nail lamps.
LN-SMD5050RGBW-P4-MC
High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 7 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 8 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 9
Company Profile
High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 10 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 11 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 12
Packaging & Shipping
High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 13 High Power Led 1w/3w Smd 3535 5050 Rgb/rgbw Led High Lumen Intensity 14
Frequently Asked Questions
Q1: Do you supply OEM, ODM service?
A1: Yes, we absolutely provide OEM and ODM services.
Q2: Are all the pictures real photos?
A2: Yes, all product pictures on this page are 100% real photos taken by us.
Q3: How can I get a quotation?
A3: Please provide details about your product needs and quantity. Our professional team will reply promptly, typically within a few hours.
Q4: Is there any discount for bulk orders?
A4: Yes, we offer wholesale pricing for bulk orders and customized products.
Q5: Do you support drop shipping and what are the shipping costs?
A5: Yes, we support drop shipping. Provide the receiver's information when placing your order. Shipping costs are calculated based on your order's volume and weight.
Q6: How to place an order?
A6: Contact us via inquiry email or online trade manager. We respond within 24 hours on working days.
Q7: What payment terms are available?
A7: We accept T/T, PayPal, Western Union, and Secure Payment.
Q8: What about the lead time?
A8: Lead time depends on order quantity, typically 3-75 working days. Sample delivery can be as fast as same day.
