Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength

Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength
Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength

Large Image :  Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength

Product Details:
Place of Origin: Guangdong, China
Brand Name: learnew
Payment & Shipping Terms:
Minimum Order Quantity: 5000
Price: $0.48-0.57
Contact Now

Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength

Description
Chip Material: InGaN Luminous Efficacy: 0.05 Lm/w
Color Temperature: R=620-630nm G=520-530nm B=460-470nm Input Voltage: R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V
Lifespan: 10000 Hours Luminous Flux: R=40-50lm G=80-90lm B=20-40lm
Operating Temperature: -20 - 80 ℃ Power: 3W
Power Dissipation: 0.4 Product Weight: 0.15 Kg
Storage Temperature: -40 - 110 ℃ Viewing Angle: 120°
Outline Dimension: 15mm Current: 350-700mA
Substrate: PURE COPPER
Highlight:

50000 Hours Life Span RGB LED Diode

,

350-700mA Current 3W LED Chip

,

R=620-630nm G=520-530nm B=460-470nm SMD LED

Epistar Epiled LED Chip - High Power RGB LED Diode
Product Overview

High-quality 3W RGB LED diode featuring copper leadframe and gold wire construction with 50,000 hours lifespan. Ideal for industrial and commercial lighting applications requiring reliable, high-power RGB solutions.

Technical Specifications
Parameter Value
Power Dissipation 3W
Dominant Wavelength R=620-630nm
G=520-530nm
B=460-470nm
Circuit 1S3P
Whole Size 15mm
Input Current 350-700mA
Input Voltage R=2.0-2.4V
G=3.0-3.4V
B=3.0-3.4V
Chips Epistar or Epiled
LES R8mm
View Angle 120°
Substrate Pure Copper
Manufacturer Learnnew Opto

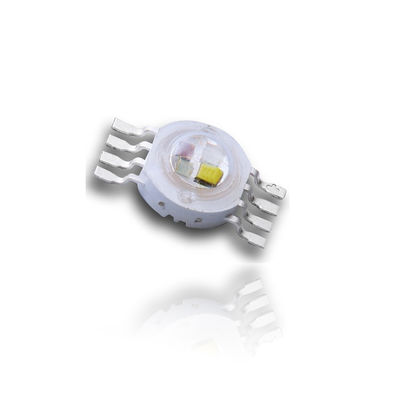

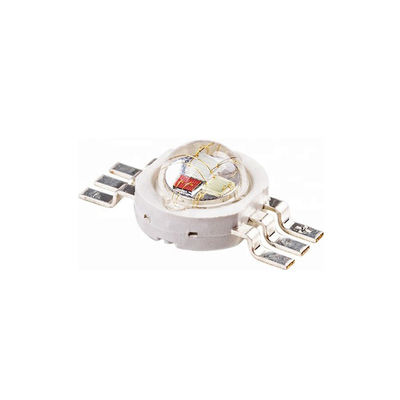

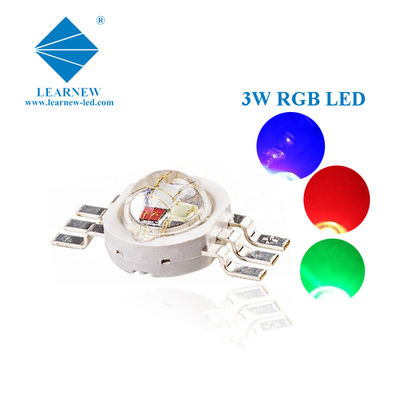

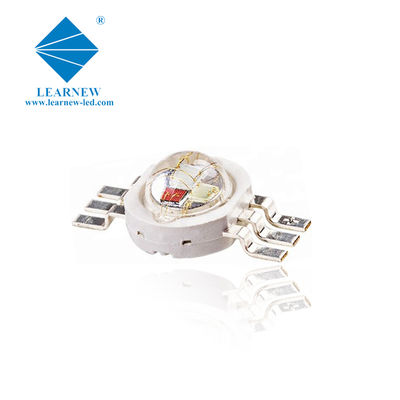

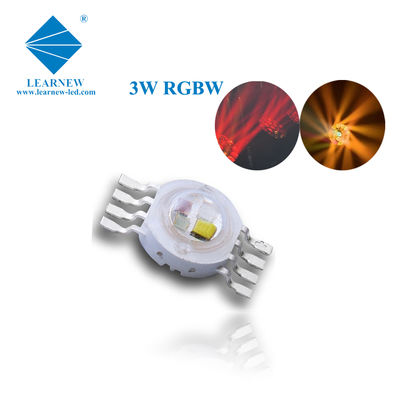

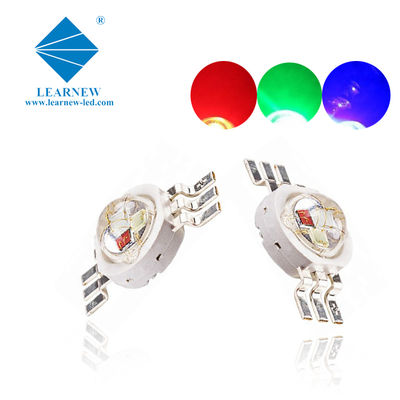

Product Images
Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength 0
Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength 1
Epistar Epiled 3W High Power RGB LED Diode with 50000 Hours Life Span 350-700mA Current and R=620-630nm G=520-530nm B=460-470nm Wavelength 2
Frequently Asked Questions
Q1: Do you supply OEM/ODM service?

A1: Yes, we provide complete OEM and ODM services to meet your specific requirements.

Q2: Are all pictures real product photos?

A2: Yes, all product images are 100% authentic photographs of our actual products.

Q3: How can I get a quotation?

A3: Please send us your requirements including products and quantities. Our team will respond promptly (typically within a few hours).

Q4: Is there bulk order discount?

A4: Yes, we offer wholesale pricing for bulk orders and customized products.

Q5: Do you support dropshipping?

A5: Yes, we support dropshipping. Shipping costs are calculated based on order volume and weight.

Q6: How to place an order?

A6: Contact us via email or online messaging. We respond within 24 hours on business days.

Q7: What payment methods do you accept?

A7: We accept T/T, PayPal, Western Union, and Secure Payment.

Q8: What is the lead time?

A8: Standard lead time is 3-75 working days depending on order quantity. Samples can ship same day.
