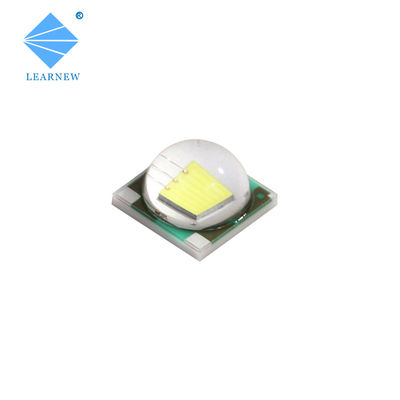

SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights

Large Image : SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Learnew

Payment & Shipping Terms:

Minimum Order Quantity:	1000

Contact Now

SMD3535 LED Chip with 30°-120° Viewing Angle 5W-6W High Power and 3000K-5700K Color Temperature for Flash Lights

Description

Chip Material:	Ingan	Luminous Efficacy:	120 Lm/w
Color Temperature:	3000K-10000K	Forward Current:	1.5A-2A
Input Voltage:	3.0-3.4V	Lifespan:	10000 Hours
Operating Temperature:	-20 - 100℃	Power:	5W-6W
Product Weight:	0.03 Kg	Storage Temperature:	-20 - 80℃
Viewing Angle:	30-120°	Chip Size:	3.53.5MM/5.05.0MM
Max Current:	3000mA	Substrate Material:	Ceramic
Optical Attenuation:	0.01%
Highlight:	30°-120° Viewing Angle SMD3535 LED Chip , 5W-6W High Power LED COB , 3000K-5700K Color Temperature Vertical Chip LED

30° /90° /120° SMD3535 5W 6W Vertical Chip 3000K 5700K Ra>95 3-3.4V 1.5A-2A LED Diodes Chips High Brightness for Flash Lights

Product Description

We accept OEM and ODM service to customize any type of LED chip.

Specification	Details
POWER	10W
CCT	WW=3000K PW=6000-7000K CW=8000-10000K
LUMINOUS EFF	1200-1500LM
SUBSTRATE	Ceramic
APPLICATION	1. CAR LIGHT 2. HIGH-END COMMERCIAL LIGHT 3. CITY LIGHTING 4. STAGE LIGHTING
Current	3000mA
Whole Size	5.0*5.0MM
Voltage	3.0-3.4V
Circuit	1S1P
LES	R2.45MM

Design Advantages

Ceramic leadframe
High ESD pass
Standard A Class chips
Cost performance
Gold wire bond
Easy reflow soldering

Applications

Ideal for various lighting applications including automotive, commercial, urban, and stage lighting solutions.

Factory Introduction

Product Packaging

Certifications

Frequently Asked Questions

Q1: Do you supply OEM, ODM service?

A1: Yes, absolutely it can be realized. We focus on OEM & ODM service for more than 7 years.

Q2: Are all the pictures real photos?

A2: Yes, the pictures of all products on this page are 100% real photos taken by us.

Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs, including product parameters, application, your contact information and quantity. Our professional team will reply within one hour.

Q4: Is there any discount for bulk orders?

A4: Yes, we offer wholesale prices for bulk orders and customized products. Follow us on Alibaba or add us to your favorite stores to receive discount and coupon information.

Q5: Do you support drop shipping and how much is the shipping cost?

A5: Yes, we support drop shipping. Please provide the receiver's information when placing your order. Shipping costs are based on your order's volume and weight, which you can check on Alibaba or ask our team.

Q6: How to place an order?

A6: You can check shipping costs and discount information online and place orders directly on Alibaba, or contact us for order details.

Q7: What payment terms are available?

A7: We accept T/T, PayPal, Western Union and Secure Payment.

Q8: What about the lead time?

A8: Lead time depends on order quantity, typically 10-15 working days. Samples in standard specifications can be delivered in 3 days.
