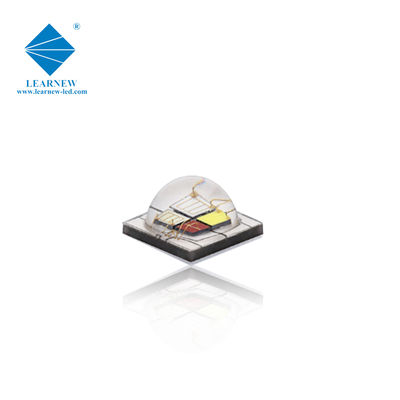

SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
August 25, 2023, I purchased UVA LED chips from Learnew. Learnew delivered the custom UVA chips we requested quickly and with excellent workmanship. It was a pleasure to work with Learnew. He was able to tell me exactly which product would work with my curing printer, saving me a lot of time. They are very professional.

—— Ashraf Trading

October 13, 2023,I received a customized 3535 COB LED Chip .Their attention to detail, timely responses, and on-time delivery have exceeded my expectation.The sample I received is what I need, very bright, I will choose LEARNEW for a long time in the future

—— Hector Bustillo

March 2024,Just received the product and have tried it,The design of these Hight LED chips is outstanding. They are compact, easy to install, and provide excellent illumination. I am extremely satisfied with their performance!

—— Fabio Antista

I am thoroughly impressed with the functionality of these UV LED chips. They offer reliable UV output, high efficiency, and a long lifespan. A great investment for any UV application!

—— Ali Muhammad

I'm Online Chat Now

SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB

SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB
SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB

Large Image :  SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB

Product Details:
Place of Origin: Guangdong, China
Brand Name: Learnew
Payment & Shipping Terms:
Minimum Order Quantity: 100

SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB

Description
Chip Material: Ingan Input Voltage: 3.0-3.4V
Lifespan: 10000 Hours Operating Temperature: -20 - 80 ℃
Optical Attenuation: 0.3% Power Dissipation: 0.4
Storage Temperature: -40 - 110 ℃ Viewing Angle: 120°

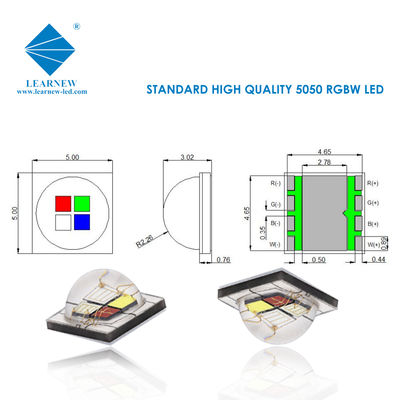

Outline Dimension: 3.5*3.5MM;5.0*5.0MM Substrate: Ceramic

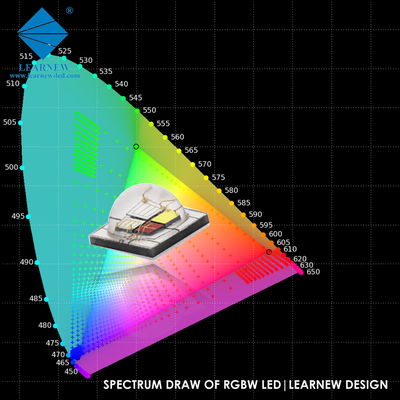

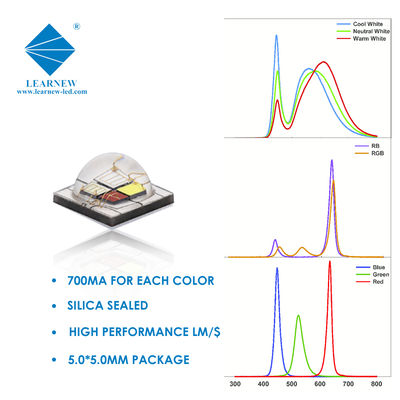

Working Time: 20000 Hours Color Wavelength: R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K
Luminous Efficiency: R=100-150lm G=150-200lm B=30-60lm W=180-240lm Forward Current: 700mA-1500mA
Power: 12W
Highlight:

4 in 1 Multi Color SMD 5050 RGBW LED Chip

,

5.0*5.0mm High Power LED COB

,

12W 5050 SMD LED

SMD 5050 RGBW Led Diode 4 in 1 Multi Color With Silica Lens 5.0*5.0mm 12W 700mA-1500mA 5050 SMD LED Chips
SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB 0 SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB 1 SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB 2 SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB 3 SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB 4
Packing & Shipping
SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB 5 SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB 6
Customer Photos
SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB 7
Certifications
SMD 5050 RGBW LED Chip 4 in 1 Multi Color with Silica Lens 5.0*5.0mm 12W 700mA-1500mA High Power LED COB 8
Frequently Asked Questions
Q1: Do you supply OEM,ODM service?
A1: YES, absolutely it can be realized. Learnnew focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs, including products parameters, application, your contact way and quantity. Our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on Alibaba or add learnew opto to "my favorite stores", you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping costs are based on your order's volume and weight, you can check on Alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in minutes.
Q7: What payment terms are available?
A7: T/T, PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
