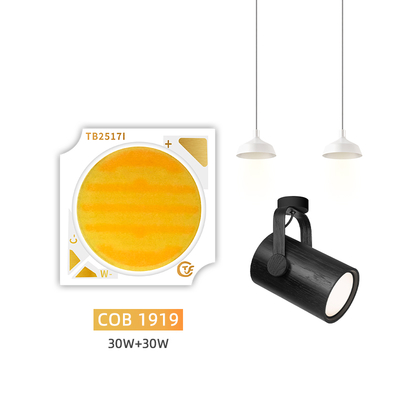

New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
August 25, 2023, I purchased UVA LED chips from Learnew. Learnew delivered the custom UVA chips we requested quickly and with excellent workmanship. It was a pleasure to work with Learnew. He was able to tell me exactly which product would work with my curing printer, saving me a lot of time. They are very professional.

—— Ashraf Trading

October 13, 2023,I received a customized 3535 COB LED Chip .Their attention to detail, timely responses, and on-time delivery have exceeded my expectation.The sample I received is what I need, very bright, I will choose LEARNEW for a long time in the future

—— Hector Bustillo

March 2024,Just received the product and have tried it,The design of these Hight LED chips is outstanding. They are compact, easy to install, and provide excellent illumination. I am extremely satisfied with their performance!

—— Fabio Antista

I am thoroughly impressed with the functionality of these UV LED chips. They offer reliable UV output, high efficiency, and a long lifespan. A great investment for any UV application!

—— Ali Muhammad

I'm Online Chat Now

New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w

New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w
New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w

Large Image :  New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w

Product Details:
Place of Origin: Guangdong, China
Brand Name: LEARNEW
Certification: CE,ROHS
Model Number: 1919 SERIES
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: $1.25-1.45

New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w

Description
Color Temperature(CCT): 2800K/6500K Input Voltage(V): 24-26V
Warranty(Year): 3-Year Type: COB LED
Support Dimmer: Yes Lighting Solutions Service: Lighting And Circuitry Design, LitePro DLX Layout, Auto CAD Layout
Luminous Efficacy(lm/w): 130 Working Hours: 10000
Product Weight(kg): 0.01 Chip Material: AlGaInP
Emitting Color: White Color Luminous Intensity: Need Testing
Luminous Flux(lm): 3000 Optical Attenuation(%): 0.01
Power: 18W+18W/24W+24W/25W+25W/30W+30W, 18W+18W/24W+24W/25W+25W/30W+30W Power Dissipation: 0.01
Viewing Angle(°): 120 Color Rendering Index(Ra): 90
Color Temperature: 2700K/6500K Operating Temperature(℃): -20 - 60
Storage Temperature(℃): -40 - 80 LED Cob Series: 1919 Series
Size: 19*19MM Lighting Area: R17MM
Current: 450-800mA Voltage: 36-38v
CRI: Ra90 Substrate: MIRROR ALU SUBSTRATE
Application: LED Downlight Application2: LED Spotlights
Working Time (hours): 10000

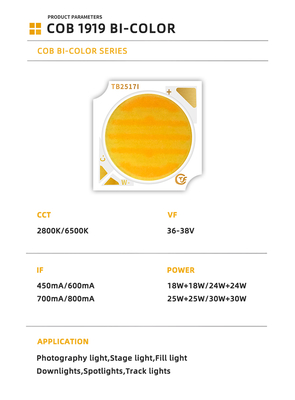

1919 COB Product Parameters

Model POWER CCT LM/W IF VF WHOLE SIZE EMIT SIZE VIEW ANGLE CRI SUBSTRATE
1919 SERIES 18W+18W 2800K/6500K 120-130 450mA 36-38V 19x19MM 17MM 120° 90
MIRROR ALU SUBSTRATE
25W+25W 2800K/6500K 100-110 700mA 36-38V 19x19MM 17MM 120° 90
MIRROR ALU SUBSTRATE



The advantages of 1919 dual-color temperature COB (Chip-on-Board) LED technology include:

  • Adjustable Color Temperature: Dual-color temperature design allows users to customize the light's warmth or coolness based on their preferences, offering flexibility in creating different lighting atmospheres.
  • High Brightness and Energy Efficiency: 1919 dual-color temperature COB LEDs provide high brightness levels while being energy-efficient, contributing to cost savings and environmental sustainability.
  • Long Lifespan and Uniform Light Distribution: These LEDs feature a long lifespan due to efficient heat dissipation and offer uniform light distribution, enhancing visual comfort and reducing glare.

New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w 0

New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w 1

New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w 2

New Product Bi-Color 1919 Chip White + Warm White 1919 Bi-color SMD LED 18w 24w 25w 30w 3

Dual color temperature 1919 COB Chip FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our
professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on WhatsApp or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on WhatsApp
or ask our team.

Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on WhatsApp. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET
plastic containers and bottles in all shapes.
