SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting

SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting
SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting

Large Image :  SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting

Product Details:
Place of Origin: Guangdong, China
Brand Name: Learnew Opto
Payment & Shipping Terms:
Minimum Order Quantity: 5000
Price: $0.77-0.88
Contact Now

SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting

Description
Color Temperature: W=6000K/7000K Input Voltage: R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V W=3.0-3.4V
Type: SMD 5050 Rgbw Lifespan: 10000 Hours
Product Weight: 0.05 Kg Optical Attenuation: 0.1%
Chip Material: AlGaInP Emitting Color: Tri-Color(Red-Blue-Green)
Luminous Flux: R=100-150lm G=150-200lm B=30-60lm W=180-240lm Power Dissipation: 0.1
Viewing Angle: 120° Color Rendering Index: 95
Operating Temperature: -20 - 60℃ Storage Temperature: -20 - 40℃
Size: 5.0*5.0mm
Highlight:

SMD 5050 RGBW LED chip

,

12W high lumen LED chip

,

RGBW stage lighting LED chip

High Power LED 5W/10W/12W SMD 5050 RGB/RGBW LED with High Lumen Intensity
Key Specifications
Attribute Value
Type SMD LED, SMD 5050 RGBW
Input Voltage R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V W=3.0-3.4V
Power 12W
Luminous Flux R=100-150lm G=150-200lm B=30-60lm W=180-240lm
Color Temperature 2700-6500K
Viewing Angle 120°
Lifespan 10,000 hours
Warranty 3-Year
Product Features
  • High lumen intensity for superior brightness
  • Tri-color (Red-Blue-Green) + Warm White emission
  • Wide color temperature range (2700-6500K)
  • Excellent color rendering (CRI 95)
  • Dimmable for flexible lighting control
  • Compact 5.0×5.0mm size for versatile applications
  • Robust construction with AlGaInP chip material
  • Low optical attenuation (0.1%)
  • Wide operating temperature range (-20°C to 60°C)
Applications
Ideal for stage lighting, architectural lighting, decorative lighting, and other professional lighting applications requiring high-intensity RGBW color mixing.
Product Images

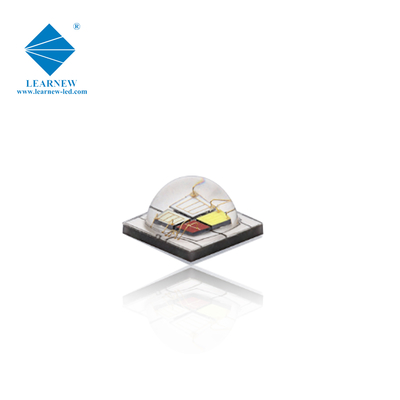

SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting 0

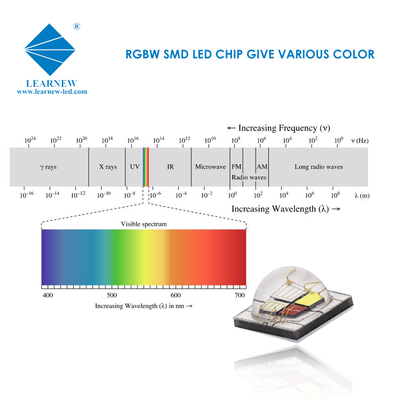

SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting 1

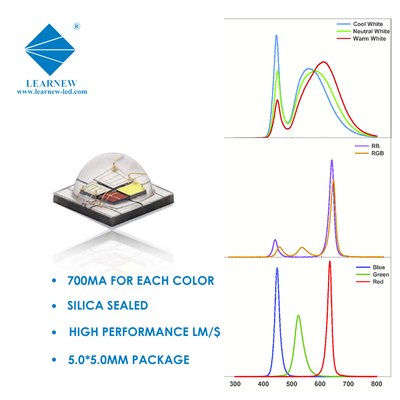

SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting 2

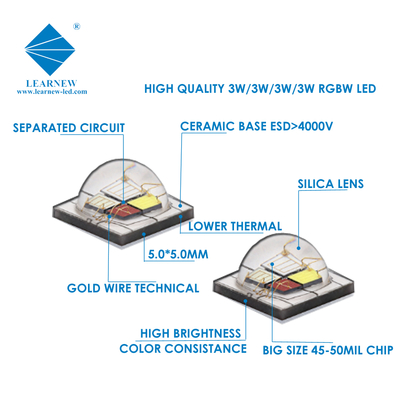

SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting 3

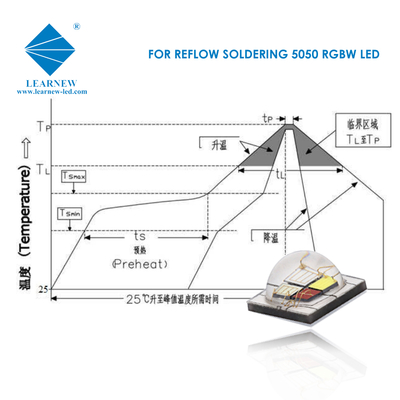

SMD 5050 RGBW LED Chip 12W High Lumen Stage Lighting 4
Frequently Asked Questions
Q: Do you supply OEM/ODM service?
A: Yes, we specialize in OEM & ODM services with over 7 years of experience in custom lighting solutions.
Q: Are the product images real photos?
A: All product images are 100% authentic photographs of our actual products.
Q: How can I get a quotation?
A: Please provide your requirements including product parameters, application, contact information, and quantity. Our team will respond within one hour.
Q: Do you offer discounts for bulk orders?
A: Yes, we provide wholesale pricing for bulk orders and customized products. Follow us on for exclusive discounts.
Q: What is your lead time?
A: Standard lead time is 10-15 working days, with sample delivery available in 3 days for standard products.
