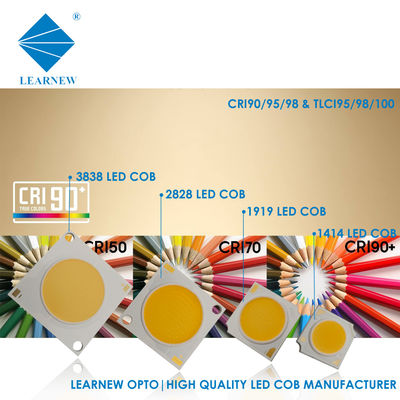

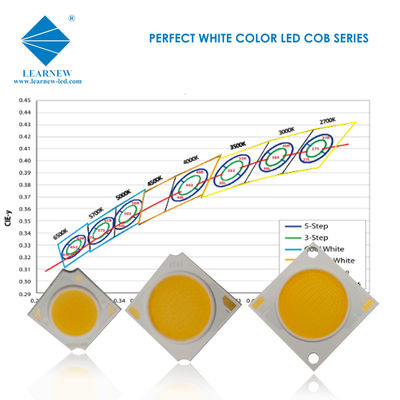

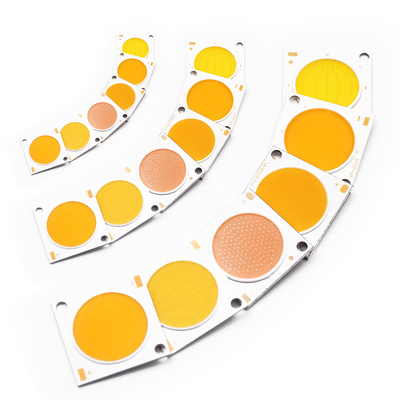

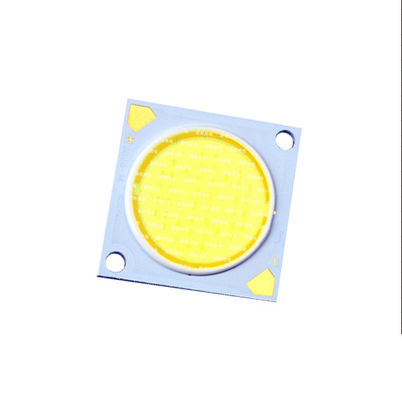

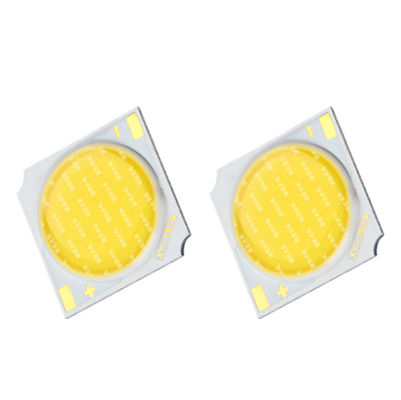

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density

Certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
China Shenzhen Learnew Optoelectronics Technology Co., Ltd. certification
Customer Reviews
August 25, 2023, I purchased UVA LED chips from Learnew. Learnew delivered the custom UVA chips we requested quickly and with excellent workmanship. It was a pleasure to work with Learnew. He was able to tell me exactly which product would work with my curing printer, saving me a lot of time. They are very professional.

—— Ashraf Trading

October 13, 2023,I received a customized 3535 COB LED Chip .Their attention to detail, timely responses, and on-time delivery have exceeded my expectation.The sample I received is what I need, very bright, I will choose LEARNEW for a long time in the future

—— Hector Bustillo

March 2024,Just received the product and have tried it,The design of these Hight LED chips is outstanding. They are compact, easy to install, and provide excellent illumination. I am extremely satisfied with their performance!

—— Fabio Antista

I am thoroughly impressed with the functionality of these UV LED chips. They offer reliable UV output, high efficiency, and a long lifespan. A great investment for any UV application!

—— Ali Muhammad

I'm Online Chat Now

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density
High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density
High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density

Large Image :  High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density

Product Details:
Place of Origin: China
Brand Name: Learnew
Certification: CE ROHS SGS
Model Number: 1414 1919 2828 3838 4046
Payment & Shipping Terms:
Minimum Order Quantity: 5000-10000
Price: $0.2-$12
Packaging Details: Plastic and Carton
Delivery Time: 7-12 working days
Payment Terms: L/C, T/T
Supply Ability: 30000 units per day

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density

Description
Product Name: High Power LED Cob Chip Consume Power: 5w 10w 20w 30w 50w 100w 200w
Color Temperature: 3000K/4000K/6500K Efficiency: 110-130lm/w
VF: 35-38v CHIPS: Flip Chip
View Angle: 120DEG CRI: Ra80 Ra90 Ra95 Ra98
Substrate: Aluminum Or Copper Size: 1414 1919 2828 3838 4046
Highlight:

36V COB LED Chips

,

3000K COB LED Chips

,

6500K 36V COB LED

High CRI 3000K 4000K 6500K 36V COB LED Chips Aluminum Copper Substrate



5w 10w 20w 30w 50w 100w 200w high efficiency high CRI 36v 3000K/4000K/6500K white and warm white color LED COB chip



High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 0

Models Consume power CCT LM/W IF VF Circuit CHIPS Whole Size Emit size View angle CRI Substrate
1414 series 10-15W 2700-6500K 110-130lm/w 280-400mA 35-38V 12S2P Flip chip 13.5*13.5mm R10.5mm 120DEG Ra>80 Super aluminum
1414 series 15-30W 2700-6500K 110-130lm/w 400-800mA 35-38V 12S4P Flip chip 13.5*13.5mm R10.5mm 120DEG Ra>80 Super aluminum
1919 series 25-35W 2700-6500K 110-130lm/w 700-1000mA 35-38V 12S4P Flip chip 19*19mm R17mm 120DEG Ra>80 Super aluminum
1919 series 35-50W 2700-6500K 110-130lm/w 900-1200mA 35-38V 12S7P Flip chip 19*19mm R17mm 120DEG Ra>80 Super aluminum
2828 series 40-60W 2700-6500K 110-130lm/w 1100-1500mA 35-38V 12S8P Flip chip 28*28mm R23mm 120DEG Ra>80 Super aluminum
2828 series 50-80W 2700-6500K 110-130lm/w 1350-2200mA 35-38V 12S12P Flip chip 28*28mm R23mm 120DEG Ra>80 Super aluminum
3838 series 75-150W 2700-6500K 110-130lm/w 2100-4000mA 35-38V 12S30P Flip chip 38*38mm R30mm 120DEG Ra>80 Super aluminum
4046 series 40-60W 2700-6500K 110-130lm/w 1250-1800mA 30-34V 10S10P Flip chip 40*46mm 25*25mm 120DEG Ra>80 Super aluminum
4046 series 80-120W 2700-6500K 110-130lm/w 2500-4000mA 30-34V 10S21P Flip chip 40*46mm 25*25mm 120DEG Ra>80 Super aluminum
4046 series 150-200W 2700-6500K 110-130lm/w 3500-4500mA 42-48V 14S30P Flip chip 40*46mm 25*25mm 120DEG Ra>80 Su



High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 1

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 2

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 3

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 4

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 5

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 6

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 7




High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 8

  • 1,High density
  • 2,High power series
  • 3,Low thermal resistance
  • 4,SDCM<5
  • 5,CRI available in 80/90/95+
  • 6,Flip chip technology
  • 7,Good stabilityHigh Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 9

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 10

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 11

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 12

High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 13High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 14High Cri 1414 2828 3838 4046 6500k 36v Cob Led Chips Aluminum Copper Substrate for High density 15
