1W 3W 8MM High Power LED COB With Pure Copper Leadframe

1W 3W 8MM High Power LED COB With Pure Copper Leadframe
1W 3W 8MM High Power LED COB With Pure Copper Leadframe
1W 3W 8MM High Power LED COB With Pure Copper Leadframe 1W 3W 8MM High Power LED COB With Pure Copper Leadframe 1W 3W 8MM High Power LED COB With Pure Copper Leadframe 1W 3W 8MM High Power LED COB With Pure Copper Leadframe 1W 3W 8MM High Power LED COB With Pure Copper Leadframe 1W 3W 8MM High Power LED COB With Pure Copper Leadframe 1W 3W 8MM High Power LED COB With Pure Copper Leadframe

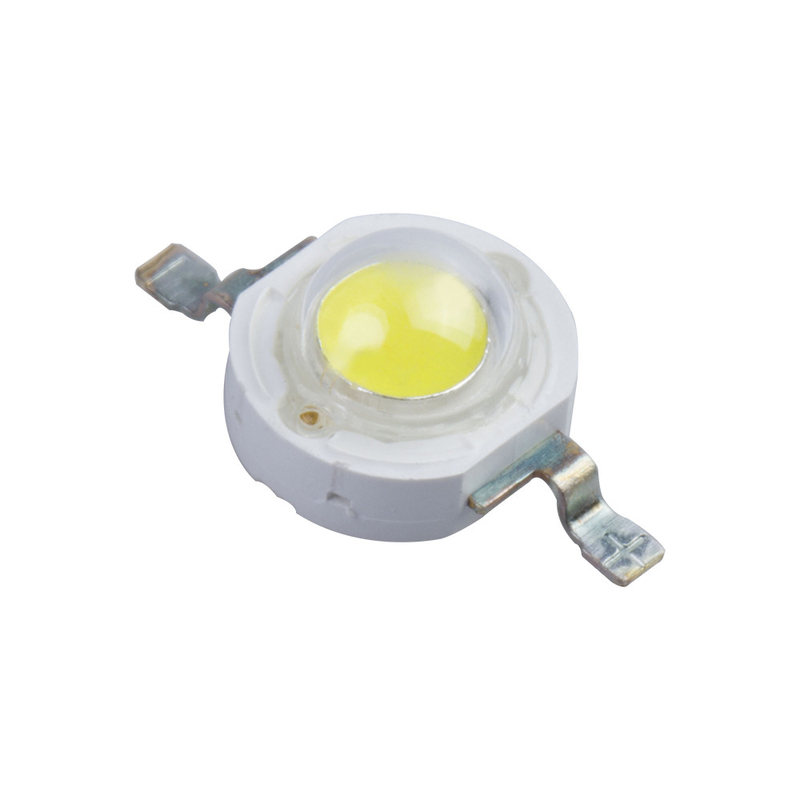

Large Image :  1W 3W 8MM High Power LED COB With Pure Copper Leadframe

Product Details:
Place of Origin: CHINA
Brand Name: LERANEW
Certification: CE RoHS SGS
Model Number: LN-AFS40FS-P50AC-25H
Payment & Shipping Terms:
Minimum Order Quantity: 5000-10000
Price: Negotiable price
Packaging Details: Anti-static Blister packing
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200,00PCS per month
Contact Now

1W 3W 8MM High Power LED COB With Pure Copper Leadframe

Description
Power: 1-3W Luminuouseff: 20-150LM/W
IF: 350-700mA VF: 2.0-3.4V
Highlight:

3W High Power Led Cob

,

8MM High Power Led Cob

,

1W High Power Led Cob

  POWER CCT LUMINUOUS EFF CHIPS IF VF CIRCUIT WHOLE SIZE LES VIEW ANGLE SUBSTRATE
LN-PLS8XW-P3-B45 3W PW=6000-6500K
NW=4000-4500K
WW=2800-3200K		 130-150LM/W BRIDGELUX
BXCD 45mil		 700mA 3.0-3.4V 1PCS in series
1PCS in parallel		 15MM R8MM 120° PURE COPPER
LN-PLS8XW-P1-EP35 1W 120-130LM/W EPISTAR UHB 35mil 350mA
LN-PLS8OR-P3-EI42 3W Red=620-630nm 60-80LM/W EPILED 42mil 700mA 2.0-2.4V 1PCS in series
1PCS in parallel		 15MM R8MM 120° PURE COPPER
LN-PLS8OR-P1-EI30 1W 50-60LM/W EPILED 30mil 350mA
LN-PLS8FR-P3-H45 3W Far Red=650-660nm 30-50LM/W HPO 45mil 700mA 2.0-2.4V 1PCS in series
1PCS in parallel		 15MM R8MM 120° PURE COPPER
LN-PLS8FR-P1-H35 1W 20-30LM/W HPO 35mil 350mA
LN-PLS8FR-P3-EI45 3W Green=525-535nm 100-120LM/W EPILED 45mil 700mA 3.0-3.4V 1PCS in series
1PCS in parallel		 15MM R8MM 120° PURE COPPER
LN-PLS8PG-P1-EI35 1W 70-90LM/W EPILED 35mil 350mA
LN-PLS8SB-P3-B45 3W Blue=455-475nm 30-40LM/W BRIDGELUX
BXCD 45mil		 700mA 3.0-3.4V 1PCS in series
1PCS in parallel		 15MM R8MM 120° PURE COPPER
LN-PLS8SB-P1-EP35 1W 20-30LM/W EPISTAR UHB 35mil 350mA
LN-PLS8OR-P3-EI42 3W Yellow=585-595nm 60-80LM/W EPILED 42mil 700mA 2.0-2.4V 1PCS in series
1PCS in parallel		 15MM R8MM 120° PURE COPPER
LN-PLS8OR-P1-EI30 1W 50-60LM/W EPILED 38mil 350mA



15 HIGH POWER Design Advantage

1,Pure copper leadframe.
2,Standard A Class chips.
3,Cost performance.
4,Gold wire bond.
5,Easy reflow sodering.

Application

1,LED grow light
2,LED torch
3,LED streetlight
4,LED floodlight
5,LED stage light
6,LED landscape lighting
7,LED spotlight
8,LED underground lamp

1W 3W 8MM High Power LED COB With Pure Copper Leadframe 0

1W 3W 8MM High Power LED COB With Pure Copper Leadframe 1

1W 3W 8MM High Power LED COB With Pure Copper Leadframe 2

FAQ

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our
professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on WhatsApp or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on WhatsApp
or ask our team.

Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on WhatsApp. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET
plastic containers and bottles in all shapes.
