1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability

1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability
1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability
1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability 1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability 1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability 1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability 1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability 1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability 1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability

Large Image :  1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability

Product Details:
Place of Origin: CHINA
Brand Name: LERANEW
Certification: CE RoHS SGS
Model Number: LN-AFS40FS-P50AC-25H
Payment & Shipping Terms:
Minimum Order Quantity: 5000-10000
Price: Negotiable price
Packaging Details: Anti-static Blister packing
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200,00PCS per month
Contact Now

1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability

Description
Power: 6-80w CCT: 2700-6500K
CRI: 70/80/90/95 VF: 9-10V/35-38V
Highlight:

6w super aluminum led cob

,

2828 Super Aluminum LED COB

,

80w Flip Chip LED

FLIP CHIP POWER CCT LM/W IF VF Circuit Chips WHOLE SIZE EMIT SIZE VIEW ANGLE CRI SUBSTRATE
1010 SERIES 6W 2700-6500K 120-140 600mA 9-10V 3S4P F1430 10x10MM R6MM 120° 70/80/90/95 Super-Aluminum
9W 1000mA 3S3P F2235
1414 SERIES 10W-15W 2700-6500K 120-140 280-400mA 35-38V 12S2P F1430 14x14MM R11MM 120° 70/80/90/95 Super-Aluminum
15W-30W 2700-6500K 120-140 400-800mA 35-38V 12S4P F1430 14x14MM R11MM
1919 SERIES 25W-35W 2700-6500K 120-140 700-1000mA 35-38V 12S4P F1430 19x19MM R17MM 120° 70/80/90/95 Super-Aluminum
35W-50W 2700-6500K 120-140 900-1200mA 35-38V 12S7P F1430 19X19MM R17MM
2828 SERIES 40W-60W 2700-6500K 120-140 1100-1500mA 35-38V 12S8P F1430 28X28MM R23MM 120° 70/80/90/95 Super-Aluminum
50W-80W 2700-6500K 120-140 1350-2200mA 35-38V 12S12P F1430 28X28MM R23MM

Led Cob Chips Design Advantage

1,High density
2,High power series
3,Low thermal resistance
4,SDCM<5
5,CRI available in 80/90/95+
6,Flip chip technology
7,Good stability

Application

1,LED spotlight
2,LED car light
3,LED downlight
4,LED tracking light
5,LED wall lamp
6,LED bulb

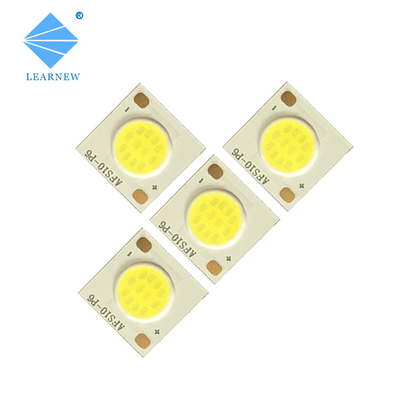

1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability 0

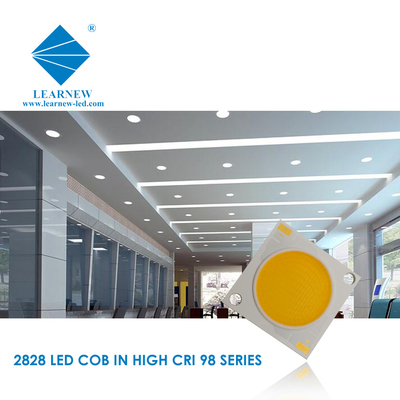

1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability 1

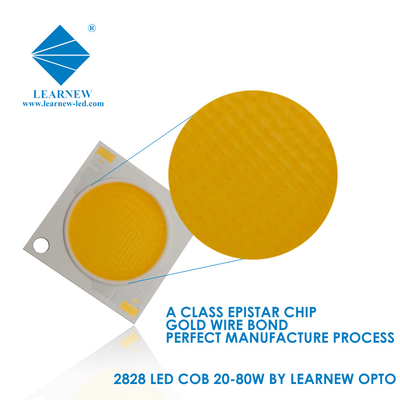

1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability 2

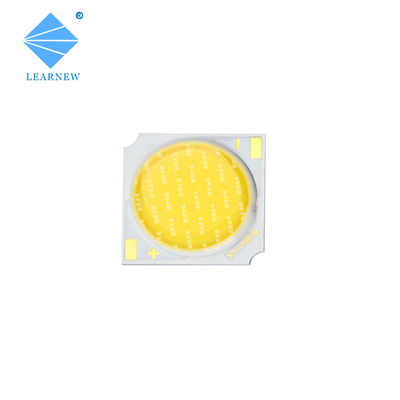

1010 1414 1919 2828 Super Aluminum LED COB 6w 30w 80w Flip Chip LED For Good Stability 3

FAQ

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our
professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on WhatsApp or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on WhatsApp
or ask our team.

Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on WhatsApp. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET
plastic containers and bottles in all shapes.



Tag:

520nm 530nm LED COB Chips,

R23mm LED COB Chips,

1414 Series LED COB Chips
